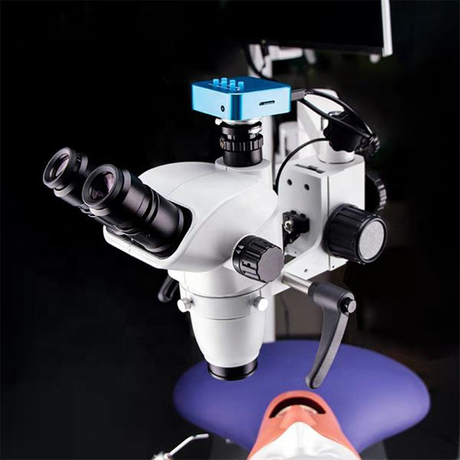

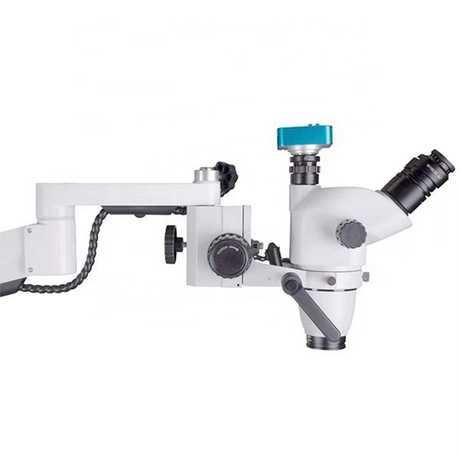

Dental Microscope with Camera Which Can Be Installed on Dental Unit

Dental Microscope with Camera Which Can Be Installed on Dental Unit

A microscope is an instrument that makes an enlarged image of a small object, thus revealing details too small to be seen by the unaided eye. The most familiar kind of microscope is the optical microscope, which uses visible light focused through lenses. Magnification improves accuracy of tooth preparations and margins preventing damage to adjacent teeth and connective tissue during all kinds of dental operations and surgery.

Eyepieces：Binoculars 10X 15B(Aperture: 15mm)

PD adjustable range:55mm-80mmDiopter Range:±7D

Big objective lens:F=250mm

Object diameter:LED light source>45,000LX

View diameter:10mm-100mm

Spot diameter:90mm

Balance arm:Down：240mm,Middle：450mm,Up：230mm

Maximum resolution:1920*1080P

Total magnification ratio: 2.5-25times

Camera pixel :1600W

Working distance: about 250mm

Microscope light source: LED Balance the light source

Camera shooting:Extraposition

light color:white and orange

Connection: computer, dental camera, monitor, TV, etc
