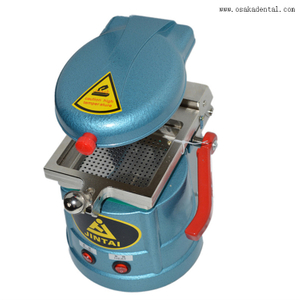

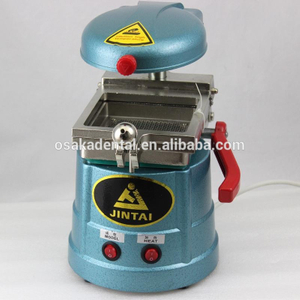

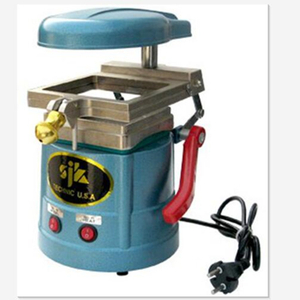

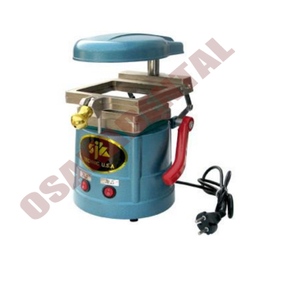

A dental vacuum former (also known as a vacuum forming machine or pressure former) is a compact piece of dental laboratory equipment used to soften a plastic sheet and then mold it over a model (or cast) of a patient's teeth using vacuum pressure. Think of it as a specialized machine that creates thin, custom-fitted plastic trays or appliances.
The process is based on the simple principle of heating a thermoplastic material until it becomes pliable and then using a vacuum to suck it down tightly around a model, capturing every detail.
A typical dental vacuum former consists of three main parts:
Heating Element: Located at the top of the machine, this powerful heater radiates heat downwards onto a plastic sheet. It's designed to soften the plastic evenly and quickly.
Platform and Clamp Frame: This is the middle section where you place your plastic sheet. The sheet is held securely in a frame that can be lowered or raised. The model of the teeth is placed on the platform below this frame.
Vacuum Pump and Chamber: Located in the base of the machine, the pump creates suction. The platform has small holes in it, and when the pump is activated, air is sucked out from under the plastic, pulling it tightly onto the model.
The process is quick, usually taking only a few minutes.
Preparation: The dental model (typically made of dental stone/plaster) is placed on the center of the perforated platform. A sheet of thermoplastic material (like ethyl vinyl acetate or PETG) is clamped securely into the frame above.
Heating: The heating element is activated, and the plastic sheet is heated until it sags slightly in the middle, indicating it has become soft and pliable. The time depends on the material type and thickness.
Forming: Once the plastic is ready, the frame with the soft sheet is lowered down over the model. Simultaneously, the vacuum pump is activated.
Vacuum Suction: The vacuum sucks all the air out from between the plastic sheet and the model. The atmospheric pressure then forces the soft, pliable plastic down to conform perfectly to every contour of the model.
Cooling and Finishing: The machine usually has a cooling fan to help the plastic set quickly in its new shape. After a minute or so, the plastic has hardened. The frame is raised, and the newly formed plastic sheet is removed. The desired appliance is then cut out from the sheet using scissors or a bur.
This machine is a workhorse in both dental clinics and labs. Common applications include:
Whitening Trays: Creating custom-fitted trays for at-home tooth whitening. The tight fit ensures the bleaching gel stays in contact with the teeth and doesn't leak onto the gums.
Night Guards (Occlusal Splints): Forming hard or soft appliances to protect teeth from grinding (bruxism) or clenching during sleep.
Retainers: Fabricating clear, removable retainers (like Essix retainers) to keep teeth in their new positions after orthodontic treatment (braces or clear aligners).
Custom Fluoride Trays: Making trays for the application of fluoride gel, especially for patients with a high risk of cavities.
Diagnostic Wax-Ups / Study Models: Creating a thin shell to visualize a treatment plan or to show a patient the potential result of cosmetic dentistry.
Surgical Stents: In implant dentistry, creating guides to help the surgeon place implants in the exact planned position.
Temporary Crowns and Bridges (Indirect Technique): Forming a template that is then filled with acrylic and seated on the prepared tooth to create a temporary restoration.
Baseplates for Dentures: In denture fabrication, creating custom trays for taking final impressions.
Manual / Single-Use: The classic machine described above. You load one sheet at a time.
Automatic / Multi-Use: Larger, more expensive machines often found in production labs. They have a rotating table that allows you to have multiple sheets and models in a cycle (e.g., heating one sheet while another is being formed), which increases efficiency for high-volume work.
In summary, a dental vacuum former is an essential tool for quickly and accurately creating a wide variety of custom-fitted dental appliances from thermoplastic materials.
