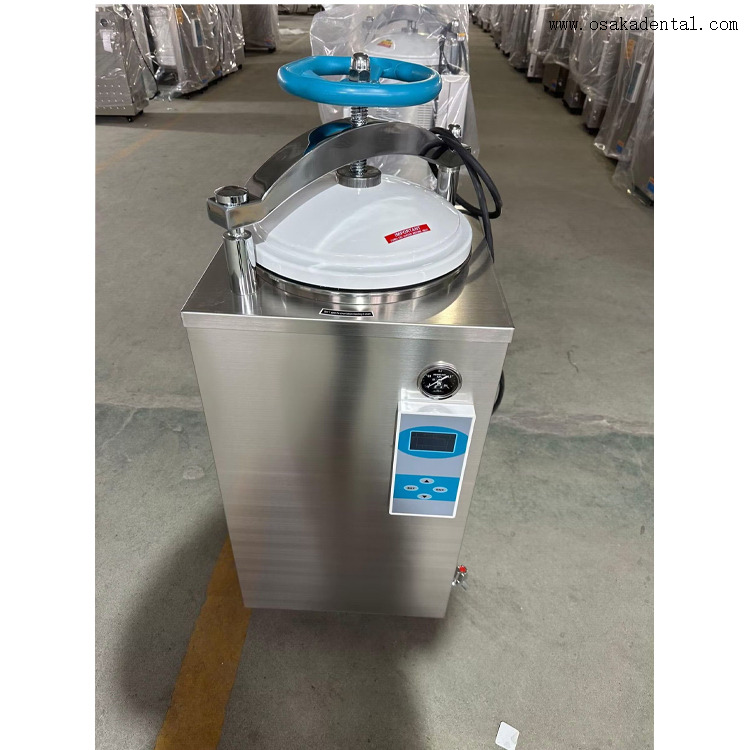

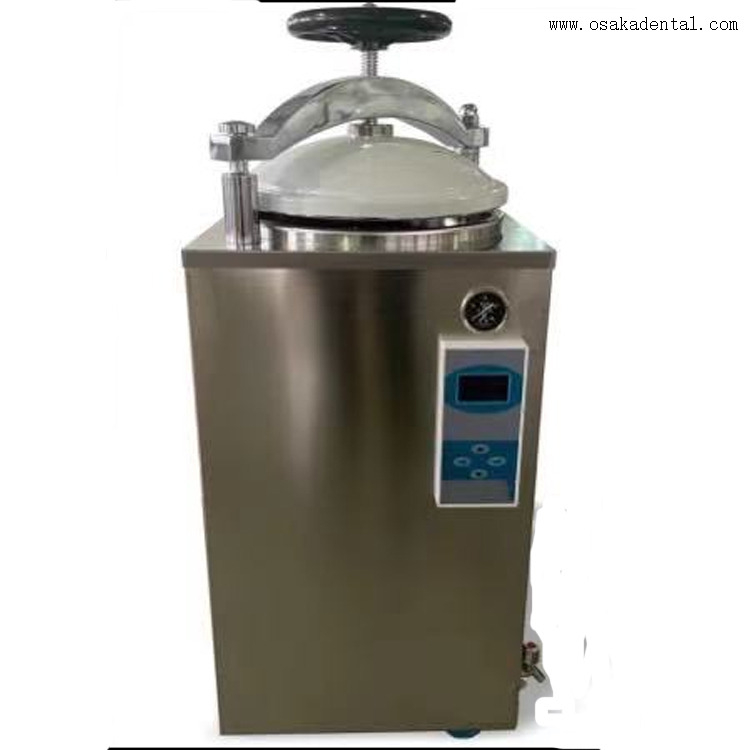

100L Dental VERTICAL PRESSURE STEAM STERILIZER
Characteristics:
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.LCD digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.With two stainless steel sterilizing baskets
11. Easy to operate, safe and reliable
12.The drying system is optional, which can be equipped according to the customers request
Technical Data:
Model technical data | 35HD(automatic) | 50HDI(automatic) | 75HD(automatic) | 100HD(automatic) |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
working pressure | 0.22MPa | |||
Working temperature | 134℃ | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59min | |||
Adjustment of temperature | 105～134℃ | |||
Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
Overall dimension | 450×450×1010(mm) | 510×470×1130(mm) | 560×560×1120 (mm) | 540×560×1250 (mm) |
Transport dimension | 570×550×1150(mm) | 590×590×1280(mm) | 650×630×1280(mm) | 680×630×1370(mm) |
G.W/N.W | 72Kg/56Kg | 88Kg/ 68Kg | 100Kg/ 80Kg | 110Kg/ 85Kg |
