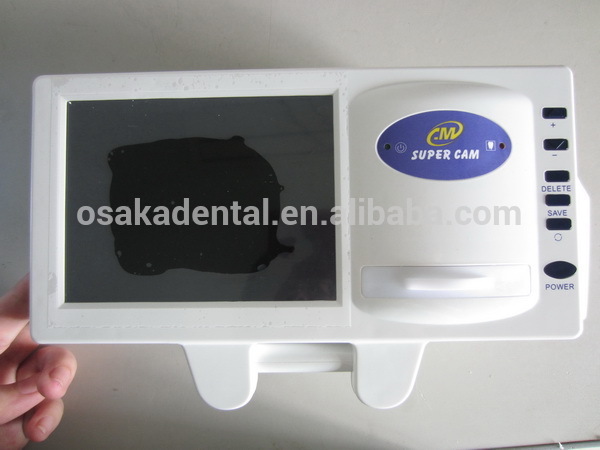

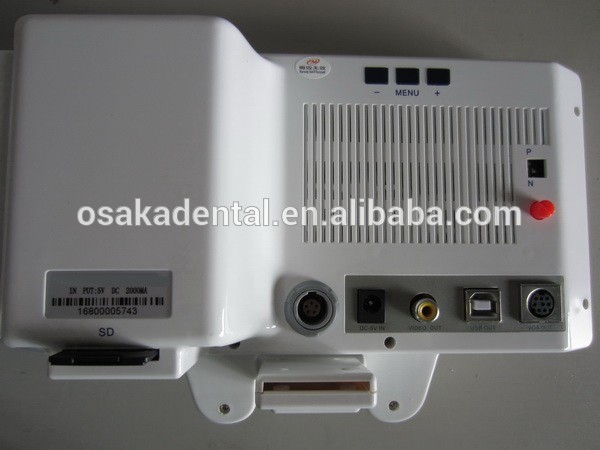

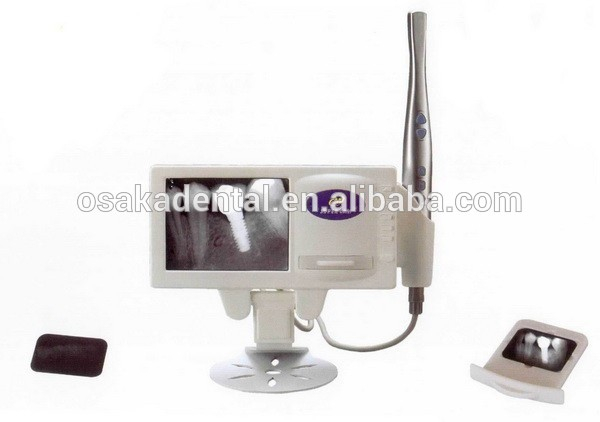

5 inch LCD intraoral camera / endoscope with x ray film reader / VGA / Video / USB out put

Quantity:
  • Dental Camera
  • OSAKADENTAL
  • OSA-F122
  • Guangdong, China (Mainland)
  • 5 inch
  • CE&FDA
  • 1 Year

Specifications

X ray film reader
Sony CCD camera and x ray film reader
can save 500 images
with SD card
with 5 inch LCD

Product's Name Multifunctional X-ray Film Reader with SD card intra oral camera
Brand Name OSAKADENTAL
Model Number OSA-F122
Output SD card
TV System NTSC / PAL
Picture Device 1/4" SONY Super HAD CCD
Effective Pixels ( HxV ) 768 x 494 ( NTSC ) 811 x 508 ( PAL )
White Light LED 6 Pieces
Viewing Marco / Intra / Extra
LCD size 5.0 inch (Diagonal)
Driver element a-Si TFT active matrix
Resolution 640* 3(RGB) *480
Display mode Normally white. Transmissive
Dot pitch 0.0529(W)*0.1587(H)mm
Active area 101.568(W)* 76.176(H) mm
Module size 117.56(W) * 88.43(H) *5.7(D) mm
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Interface Digital
Backlight Power consumption 1. 2000W (Typ.)
Power Source DC-5V 2A 100-240V
Panel Power consumption 0.193(Typ.)
Size 285*245*95mm
Weight 1.72Kg
Warranty Time One year

1, Combinethe 5inch LCD monitor, X-ray reader and Sony CCD intra oral camera.

2, High resolution, high quality.

3, Built-in over-voltage and reverse voltage protection circuit.

4, Light size, easy to operate.

5, Built-in SD card can save 500 piece pictures.

6, Multi functional, supports switch X-ray film images and intra oral camera’s images anytime.

7, 5inch LCD monitor can adjust brightness, contrast and color and so on.

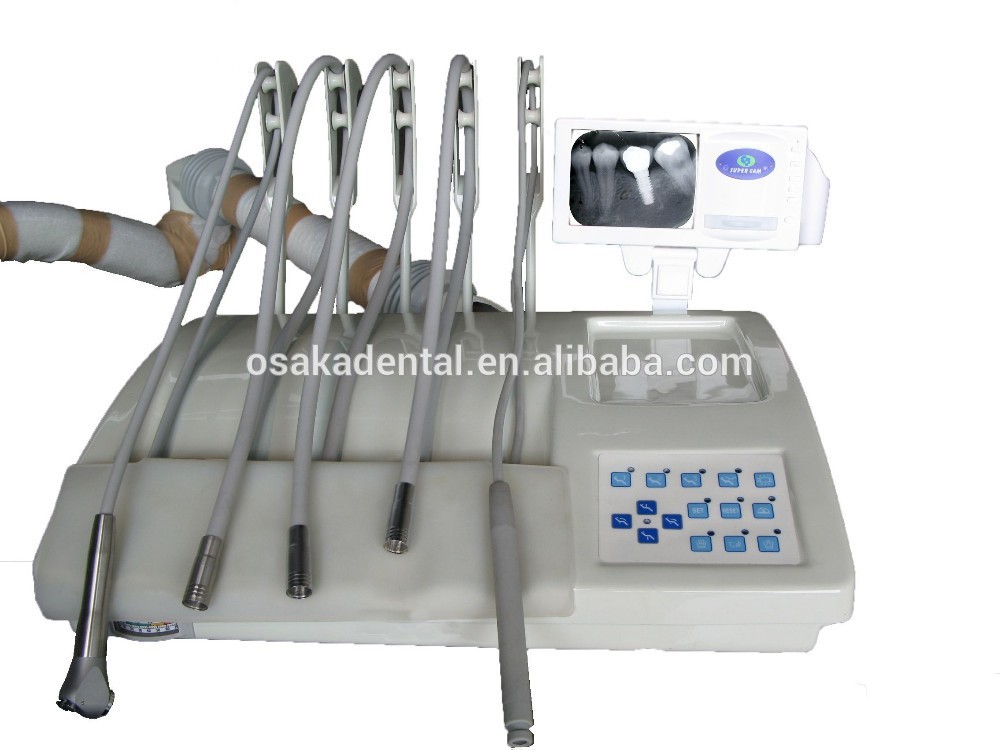

8, It can fixed on dental chair,occupy small space and easy to install.

9. Has PAL and NTSC option.

10. Canupgrade to wireless system .

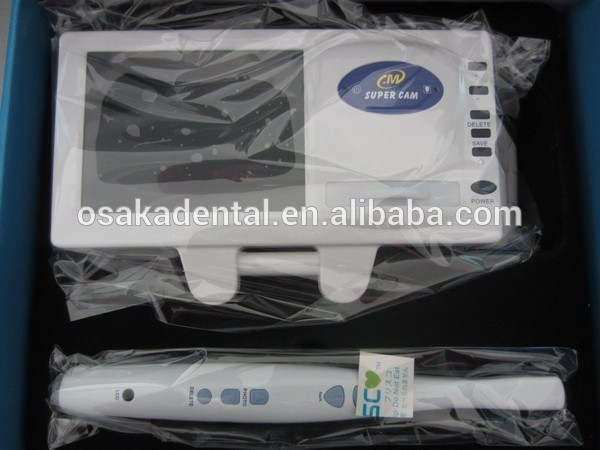

Packaging & Shipping
