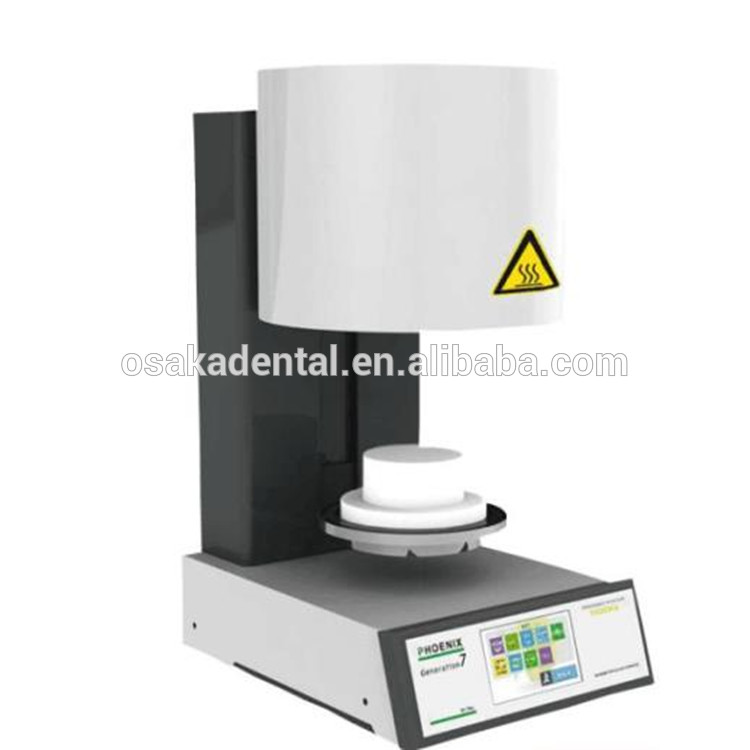

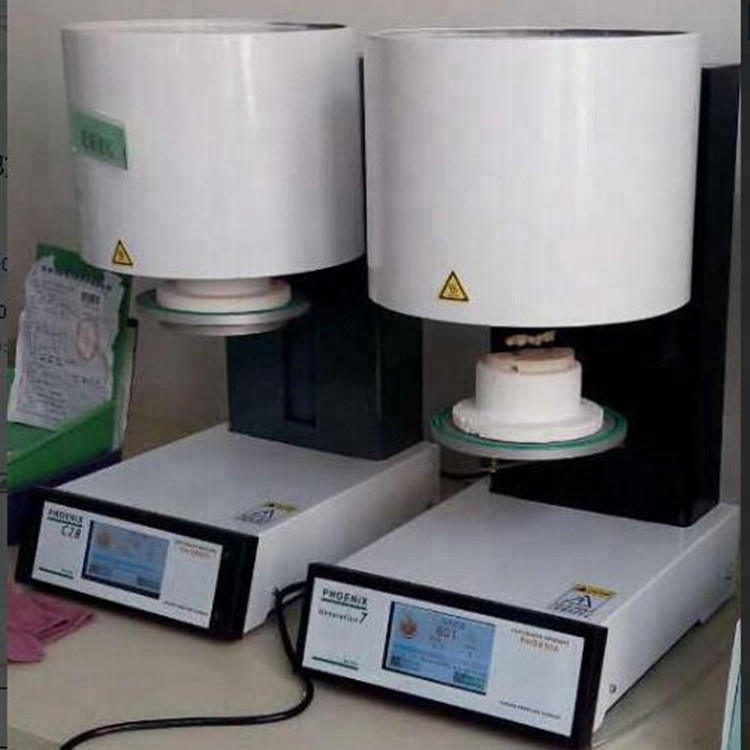

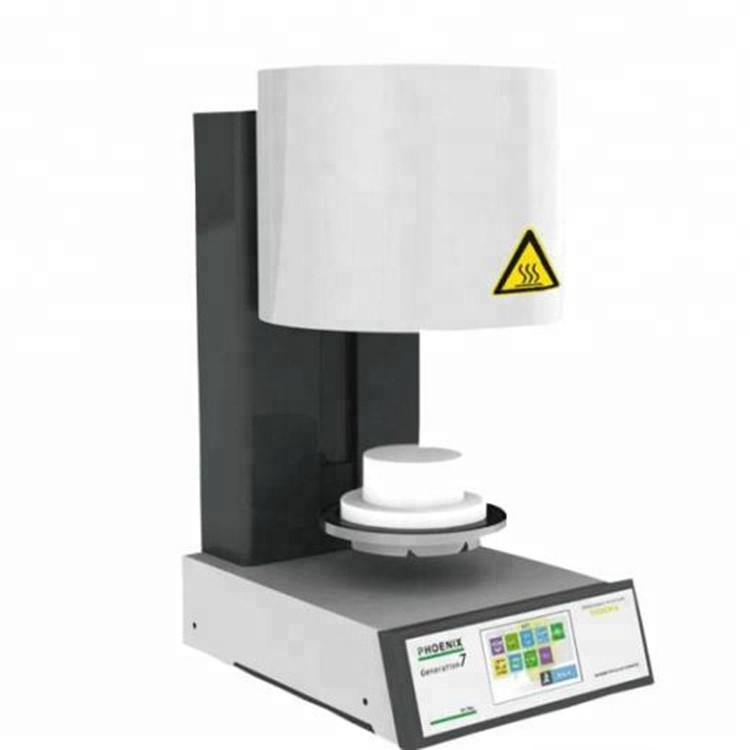

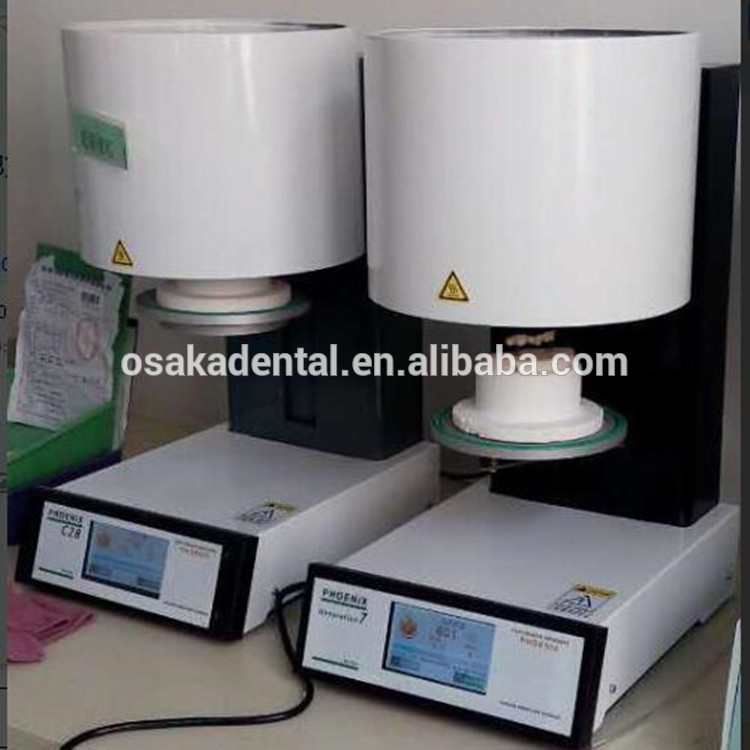

Automatic Programmable Vacuum Porcelain Furnace and Dental Porcelain Stove
1 Features of C500 series porcelain furnace:
High-quality automatic temperature adjustment function to ensure the actual temperature
error is within +/-1° .
Easy to operate, compact size, one of the smallest ceramic ovens in the world.
Beautiful and elegant stainless steel casing.
Quartz spiral furnace.
Automatic temperature calibration before each firing program.
Use "Cloud Technology" to connect up to 128 ovens using the PC Service Manager.
USB port is convenient to connect with computer service program.
The controller can be plugged into a maximum 8GB expansion CF card.
The oven program can be expanded to a maximum of 100 billion.
Heating rate: up to 200 degrees Celsius / minute
(392 degrees Fahrenheit / minute)
Maximum temperature: C500 type Maximum 1200 degrees Celsius
(2283 degrees Fahrenheit)
Model C300 up to 1100 degrees Celsius
Maximum temperature retention time: up to 2 hours and 46 minutes
Vacuum level setting standard: 1-101%
Operating range: 100-120V 50/60HZ 230V 50/60HZ
Current: 14.5 amps @110V 7.0 amps @230V
Power: up to 1500 watts (without vacuum pump)
Volume: 30.7cm (12.1") Height × 40.4cm (15.9") Width × 52cm (20.5") Deep
Furnace platform: 9cm (3.5") diameter
Net weight: 17Kg (less than 1Kg depending on the accessories)
Packing weight 20Kg (less than 1Kg depending on the accessories)
