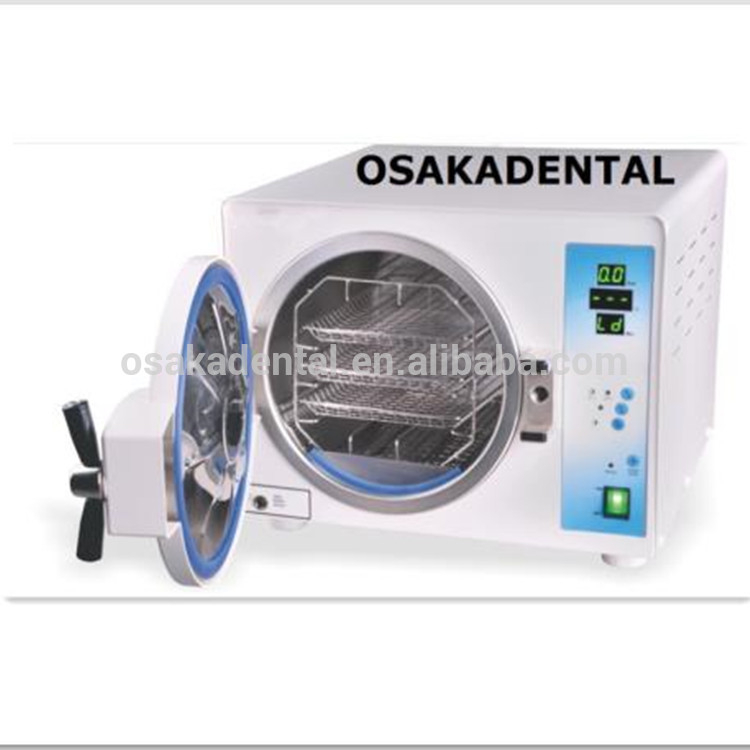

A High Quality Dental Steam Sterilizer N Class 18L

High Quality Dental Steam Sterilizer N Class 18L

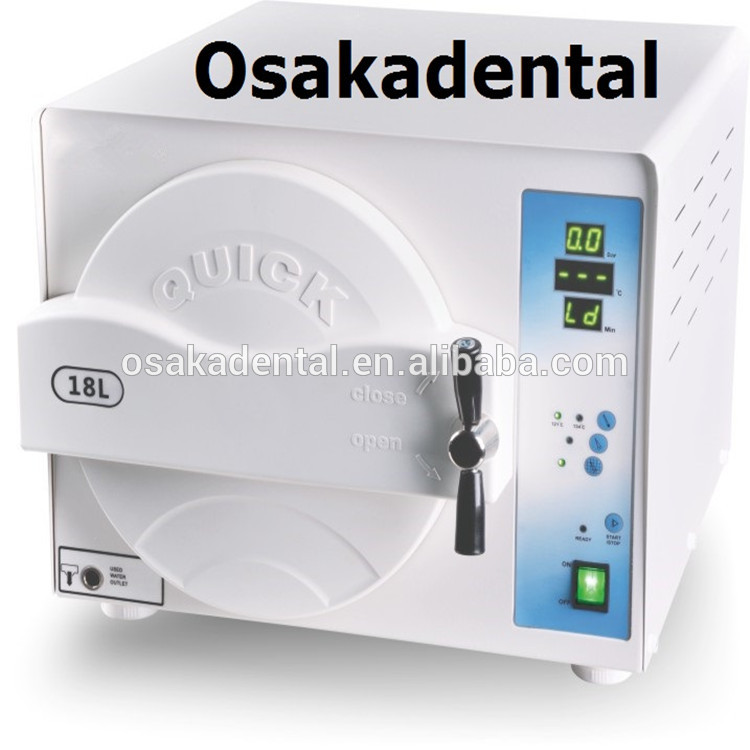

Control Panel
6.1: '1' -Pressure display window
Real-time display the air pressure inside the cavity.
Unit: Bar
6.2: '2'Temperature display window
Real-time display the temperature inside the cavity.
Unit: ºC
6.3: '3'Status/ malfunction code number display window
Applied for displaying kinds of status of the steam sterilizer during its working time. See more details in "Appendix working status display form".
When alarm occurs to the steam sterilizer, the digital pipe of the display will show the alarm code number, the user can find out the malfunction part. (Once the malfunction occurring to the steam sterilizer, please contact the service center or distributor immediately).
6.4 : '4' button
It is used to be the options for the working temperature. There are two working temperature for choice:121 ºC or 134 ºC, whose light will be on after being chosen.

6.5: '5' UNWRAPPED button
It's used for the sterilization choice especially for the unwrapped devices. The working temperature is 121ºC or 134ºC.
After being chosen, its indicator light is on.

6.6: '6' WRAPPED button
It's used to be the sterilization choice especially for the wrapped devices. The working temperature is 121ºC or 134ºC.
After being chosen, its indicator light is on.

6.7: '7' START/STOP button
Press down the starting button for starting the sterilizing process.
If you want exit Process,please turn off the electric power.
Note:If forced exit or outage,please wait for 10 minutes,then open the door, In case of the air pressure indoor.

6.8: '8' READY button
Door lock indicator light. When the indicator light lights on, it means the machine can start sterilizing, after starting, the indicator light turns off.

Operation

7.1 Water filling
After turning on the power to the steam sterilizer, if the "Green" water light is flashing, it means the low water level in the source water tank, please fill more distilled water until the light off and with a "du" sound. Fill about 1500ml distilled water(3 cups) each time.

7.2 Close the door after putting inside the apparatus to be sterilized, and revolve the handle to the maximum position.

7.3 Locks indicator "READY" light, 7.4 " READY "," START "press the "START" key to start working.
:," START "Note: If the door is not completely closed, the machine can't work when press down the "START" button. If the door is opening during working process, the working status display will flash "E5"as alarm and the steam sterilizer will stop working until restart again by switching off the power and dismissing the alarm.
7.5 ," END ",7.4 When Status display "ED" comes out, and erupts a beep after sterilizing process, then you can open the door and take the sterilized apparatus out.
:,. Note: In case of scald, use the attached hand-support plate to take out the sterilized apparatus.
After opening the door of steam sterilizer, the process is reset at "LD" state, which means the steam sterilizer is under heat preservation status and waiting for another sterilizing procedure.7.6 10 ,,.
7.7 ,.7.5 Please shut off the main power supply when you don't use the steam sterilizer. (). (The light of power is off).
7.6 Sterilizing cycle
