OSA-ART-E1
osakadental
901849900

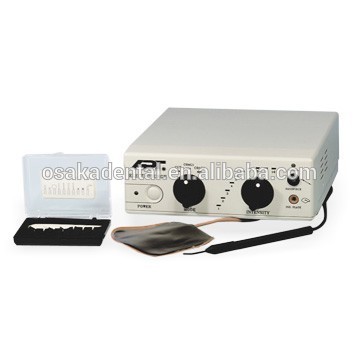

The ART-E1 electrosurgery unit is a stand-alone device used for cutting and coagulating.
Part numbers:
E1-1-ART-A1-70-0 (110V model)
E1-2-ART-v-A1-70-0 (220V model)
Features:
3 Operating modes:
Cut
Coag 1
Coag 2
10 Power level settings
Specifications:
Maximum power output: 50W (@ 400 ohm load)
Power supply: 110V±5% ~50/60Hz 92VA or 220V±5% ~50/60Hz 92VA
Work frequency: 1.5~1.7MHz±5%
Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
Hand piece cable length: 190 cm
Indifference plate cable length: 190 cm
Weight: 12lbs
Included Accessories (may differ depending on location/region):
Hand piece
Indifference plate
Electrode tip set of 7
T1-Diamond
T2-Small Loop
T3-Large Loop
T4-Fine Wire
T5-Heavy Wire
T7-Oval Loop
T9-Heavy Ball
Foot switch
AC Adapter
User Manual
Optional Accessories:
Bipolar converter: The bipolar converter does not convert the system to operate in bipolar mode. It merely allows bipolar prongs and hand pieces to be used with the ART-E1.
