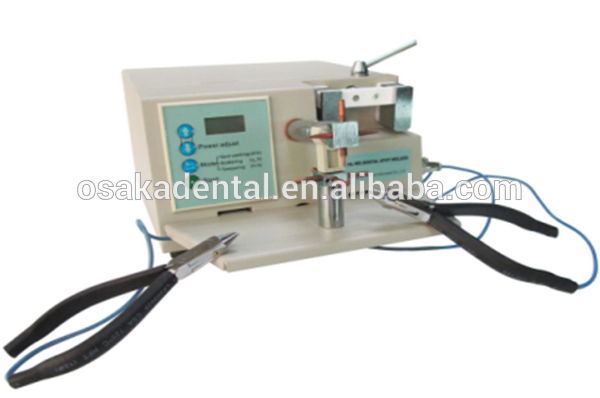

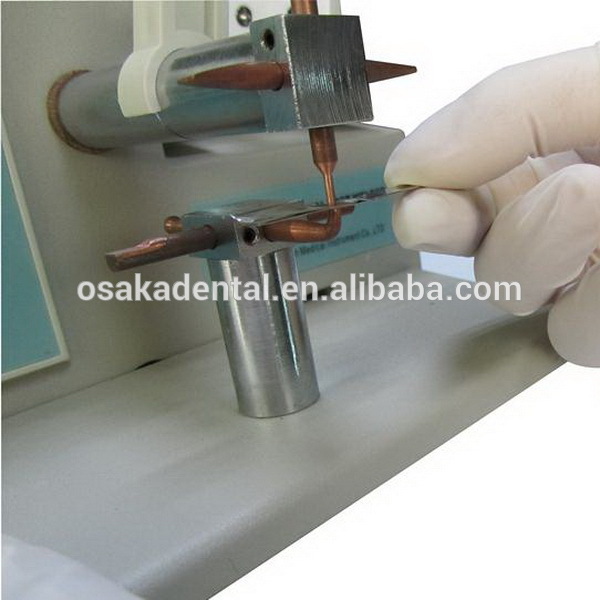

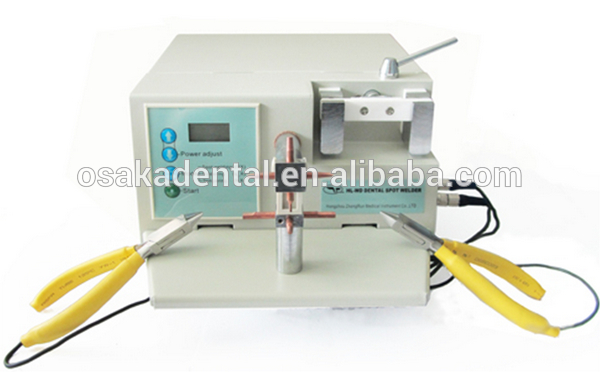

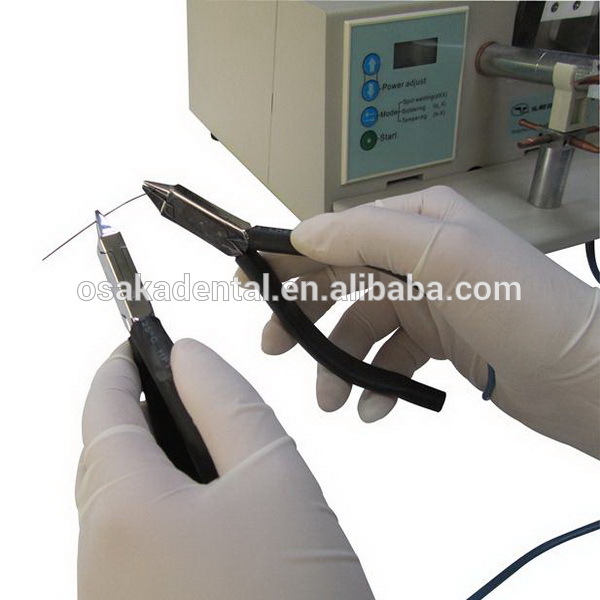

Dental Orthodontic Spot Welder / Welding Machine 0.2mm~1.8mm

1.Main characteristics:
- Adopt microprocessor control system, reliable quality, and high control precision.
- Adopt digital display functional mode and power parameter, through membrane button to adjust the parameter, its convenient and concise.
- Good in safety feature; it has overheating protection system, there’s indicator and alarm function with sub-pressure, overpressure and improper operation.
- With the welding parameters memory function, when switch on, it will automatically shows the same parameters as the last set, so it’s no need to adjust parameter again next time at the same condition.
- Welding electrodes can be chosen with different combination, it’s suitable for the different weldment.
- The machine has various functions as spot welding, braze welding and heat treatment.
Can use function clamps to do heat treatment.

2.Main technique parameter:
- Power supply: 220V±10%, 50HZ or 110V, 60HZ
- Power: maximum current 20A
- Transformer output power: 2000W, output voltage: 5V
- Incorrect operation alarm: when operation condition don’t accord with SET mode, the display shows Error beep.
- Security type: belongs classⅠ, type B
- Transformer overheating protection: 85℃
- Energy regulation: Spot welding (dxx) 1~30
Braze welding (q_x) 1~9
Heat treatment (h_x) 1~9
- Dimensions of weldment: dia 0.2mm~1.8mm stainless steel wire
- Fuse: dia 5×20mm, 20A
- Environment conditions: temperature 5℃~40℃ Relative humidity ≤80%
Storage condition: temperature -10℃~55℃ Relative humidity ≤80%

3.Operation Detail

Questions and Answers:
1 How do I order from you?

After got your order list we will make pi (including the good cost and shipment cost ) so we need the good model. Quantity and need your details address and phone number Goods will be prepared and sent after payment is received. Goods delivery details will also be informed accordingly.

2 What is the shipping term?

For parcels less than 50kg, express courier is more economic. We have big discount offer from DHL, FedEx, UPS, TNT, EMS and AMAMEX.

for big parcels we can send it by air or by sea .

We can also send goods to your forwarder as you request.

We will try to find all the shipment way to send the good to your place.

3. What about the warranty period and after-sale service?

Dental equipment, like dental unit, autoclave, has one year warranty period. If you have problem in using, you can return to us by post. Or you can describe the problem details, we will ask technician to give you solution.

Free spare parts can be provided if necessary.
