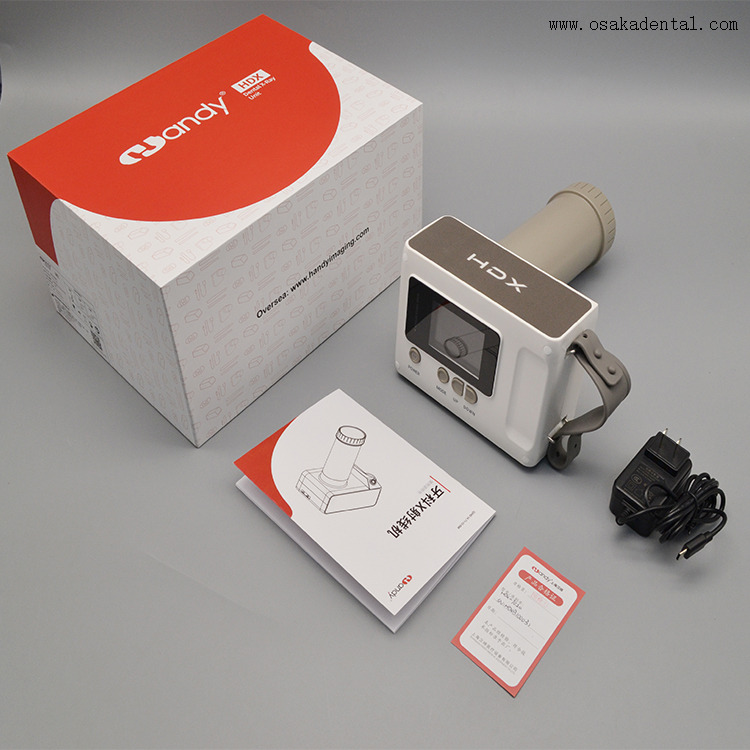

This product includes an X-ray tube assembly, a lithium battery pack, a charger, a beam limiting
device, and an exposure hand switch (option) .
| Quantity: | |
|---|---|
OSA-HDR-7020
OSAKADENTAL
9018499000

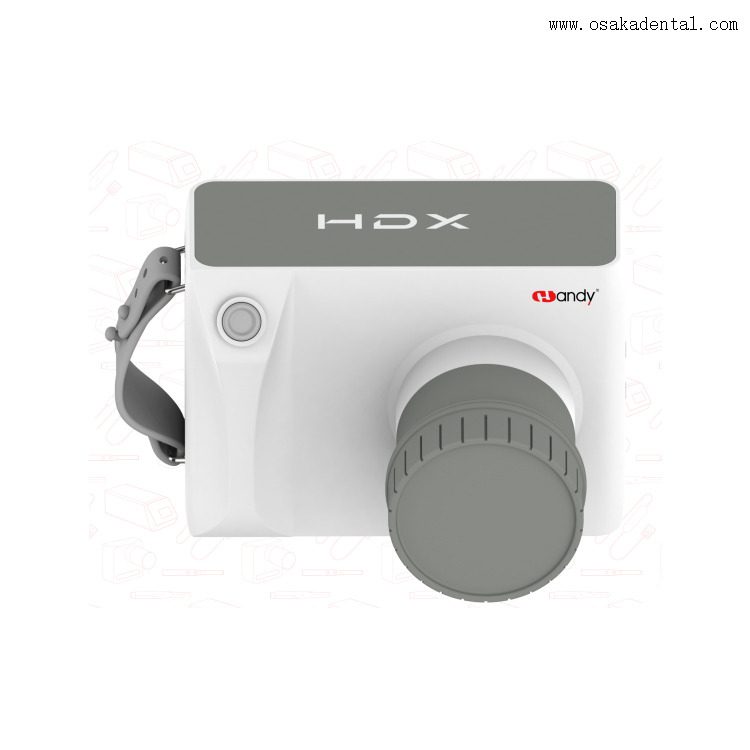

Dental Portable High-Frequency X -Ray Unit
Dental X-ray Unit are designed for capturing high-quality images of teeth. They work in combination with film, IP imaging plates, digital sensors, and other imaging devices to produce clear X-ray images, enabling precise diagnosis and treatment. These machines are widely used in hospitals, clinics, and other medical facilities for dental examination, surgeries, orthodontic procedures, root canal therapy, and the diagnosis and treatment of various dental conditions.
| SPECIFICATION | |
| Tube Voltage (kV) | 70 |
| Tube Current (mA) | 2 |
| Loading Time (s) | 0.04~2 |
| Focus(mm) | 0.4 |
| Battery Voltage (V) | 14.8 |
| Nominal Electrical Power (W) | 140 |
| Maximum Output Power ( W) | 140 |
| Battery Capacity (mAH) | 3000 |
| Charger Input (VAC) | 220 |
| Leakage Radiation (mGy/h) | ≤0.25 |
| Loading Time Adjustment ( S) | Adjust according to R'10 number system 0.04, 0.05, 0.063, 0.08, 0.1, 0.125, 0.16, 0.2, 0.25, 0.32, 0.4,0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0 |
Rechargeable Battery Parameters
Charging limit voltage: 16.8V
Standard charging current: 0.7A
Battery voltage: 14.8 V
capacity : 3000mAh
Dental Portable High-Frequency X -Ray Unit
Dental X-ray Unit are designed for capturing high-quality images of teeth. They work in combination with film, IP imaging plates, digital sensors, and other imaging devices to produce clear X-ray images, enabling precise diagnosis and treatment. These machines are widely used in hospitals, clinics, and other medical facilities for dental examination, surgeries, orthodontic procedures, root canal therapy, and the diagnosis and treatment of various dental conditions.
| SPECIFICATION | |
| Tube Voltage (kV) | 70 |
| Tube Current (mA) | 2 |
| Loading Time (s) | 0.04~2 |
| Focus(mm) | 0.4 |
| Battery Voltage (V) | 14.8 |
| Nominal Electrical Power (W) | 140 |
| Maximum Output Power ( W) | 140 |
| Battery Capacity (mAH) | 3000 |
| Charger Input (VAC) | 220 |
| Leakage Radiation (mGy/h) | ≤0.25 |
| Loading Time Adjustment ( S) | Adjust according to R'10 number system 0.04, 0.05, 0.063, 0.08, 0.1, 0.125, 0.16, 0.2, 0.25, 0.32, 0.4,0.5, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0 |
Rechargeable Battery Parameters
Charging limit voltage: 16.8V
Standard charging current: 0.7A
Battery voltage: 14.8 V
capacity : 3000mAh
