Battery-pack
– Material : Lithium-Polymer
– Charge Condition
Current : 1.0 A
Voltage : 16.8 VDC
Temperature : 0 °C ~ 40° C
– Use condition
Max. current : 10 A
Voltage range : 12(min) ~ 16.8(MAX) V
Temperature : -20 °C ~ 60 °C

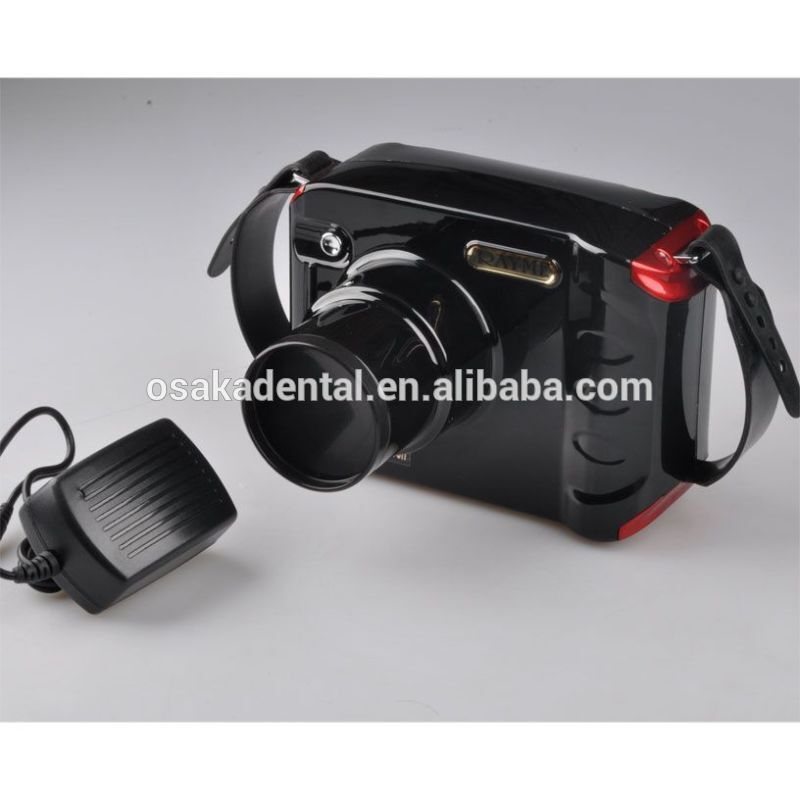

Charger
– Model : JBL910A-1600
– Input Voltage : 100 ~ 250 VAC
– Output Voltage : 16.8 VDC
– Current : 1.0A

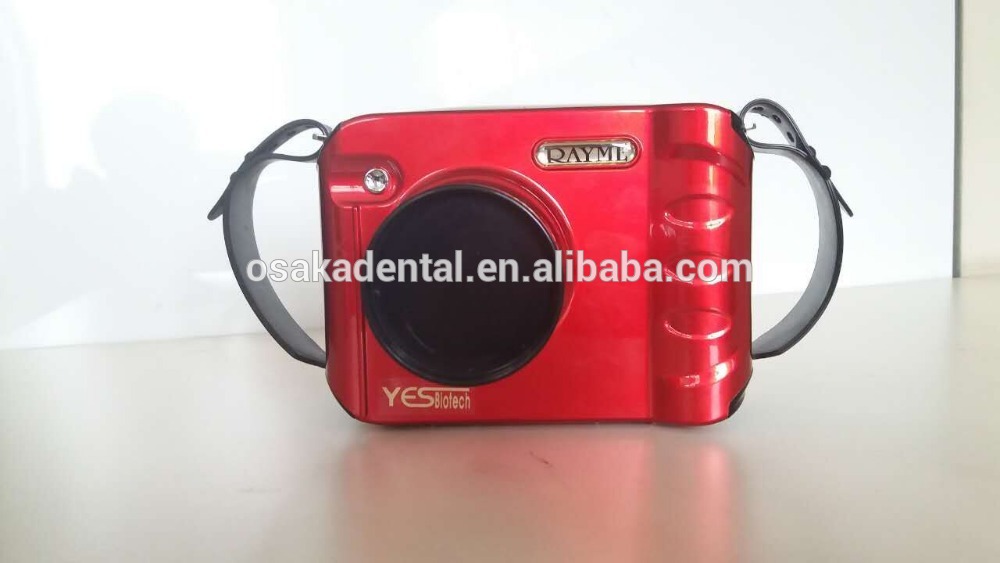

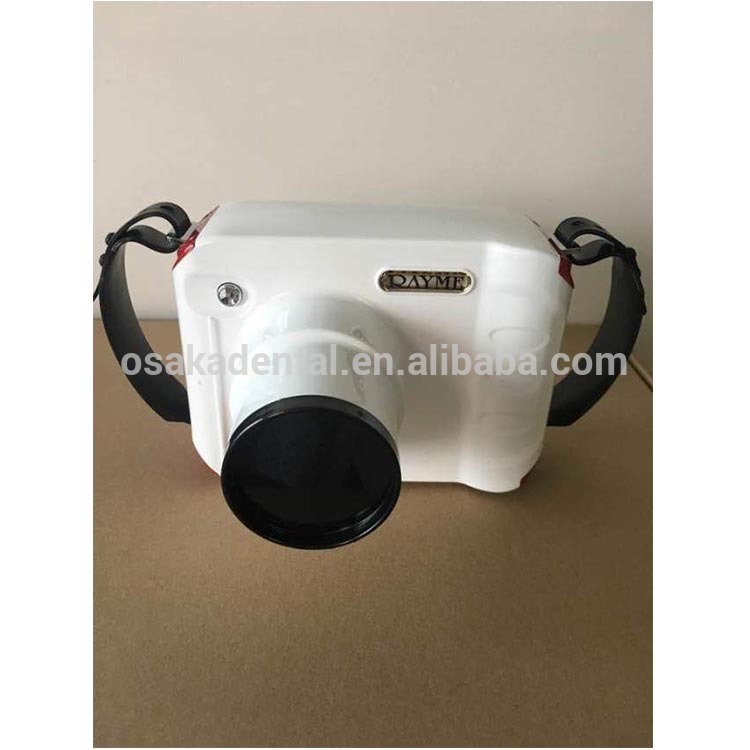

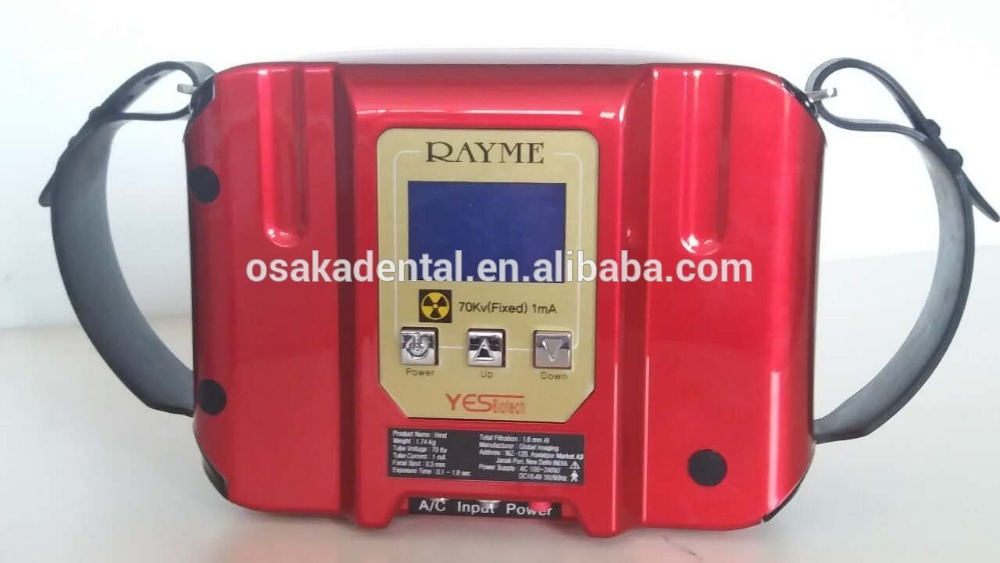

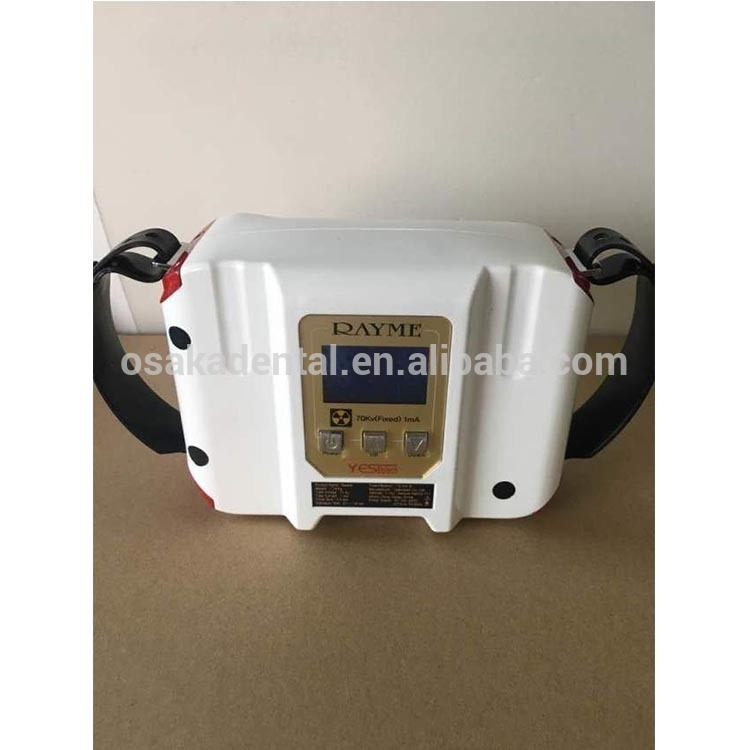

Name: Rayme
Tube Voltage : 70kV(fixed)
Tube Current : 1mA(fixed)
X-Ray Tube type : Bipolar fixied X-ray tube
X-Ray Tube model : DG-073B-DC
X-Ray Tube Focal Size : 0.3*0.3mm
Cooling system : Oil cooling
Total filtration : 1.6 mm Al
(Inherent filtration : 0.8mm, fixed added filter :0.7 mm Aluminum)
Target angle : 21°
Time Set-up function : 0.10 ~ 1.80 sec
Source to image receptor distance : >10cm (fixed by cone)
X-ray field : 50 mm (round-style)
Size of main body : 139(W) x 163(H) x 66.5mm(D)
Weight of body : About 1.8 kg (except the battery pack)
