Dental Ultrasonic Scaler P5 with H3 Scaler Handpiece

Dental Ultrasonic Scaler P5 with H3 Scaler Handpiece

A dental ultrasonic scaler is a professional instrument used by dentists and dental hygienists to remove hard deposits (calculus/tartar), stain, and bacterial biofilm (plaque) from the surfaces of teeth—both above and below the gum line.

Unlike traditional manual scalers (metal hooks that require physical scraping force), an ultrasonic scaler uses high-frequency vibrations combined with a water spray to clean teeth more efficiently and comfortably.

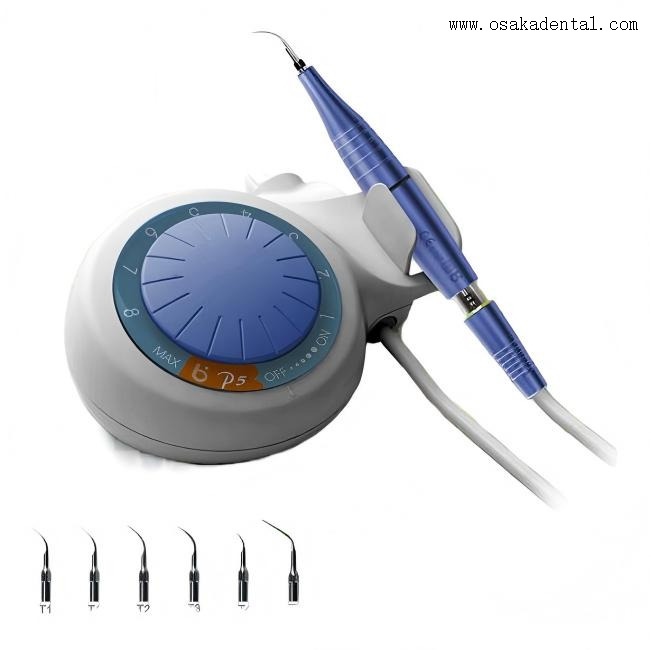

The device has three main components:

1. The Control Unit (base console) – Generates electrical power.

2. The Handpiece – Holds the metal tip.

3. The Interchangeable Tips (working ends) – Different shapes for different tasks (e.g., heavy calculus, deep gum pockets, or around implants).

When activated, the tip vibrates 20,000 to 45,000 times per second (far faster than any manual instrument). These vibrations:

• Shatter tartar into tiny, harmless fragments.

• Create microscopic bubbles in the water spray (a phenomenon called cavitation), which collapse and flush bacteria out of deep gum pockets.

• Produce gentle water currents (acoustic streaming) that disrupt biofilm without physically touching the tissue.

The water spray also cools the vibrating tip (preventing heat damage to the tooth nerve) and washes away debris.

Features

1. The Piezoelectric Working way ensures that the machine always work on a steady power, high  efficiency and generates little heat.
   2. Digitally controlled, automatic frequency tracking ensures that the machine always work on the best frequency and more steadily.
   3. The design of automatic amplitude compensation function reduces patients, discomfort.
   4. The scaling tip is made of high strength alloy material The atomized Spraying design forms the Cavitations, and in conditions of water it will form oxygenated water to release the new eco - pure oxygen, which can efficiently inhibit periodontal anaerobic bacteria against periodontal diseases

   5. Ergonomic design of headpiece makes it easy for Long time Use
   Cable of the headpiece is made of Imported silica gel tube. soft and durable.
   6. Axis of the headpiece is made of high-quality titanium alloy. strong and durable
