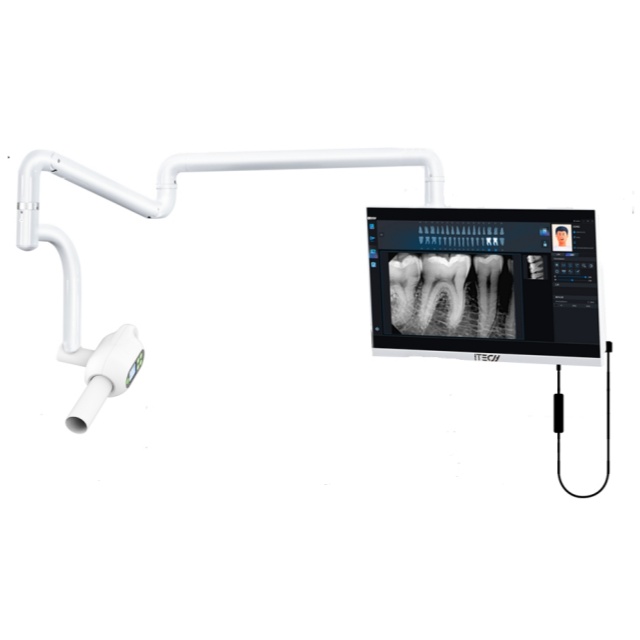

Dental X Ray Machine Installed on Dental Chair with Sensor And Monitor

Maximum output power loading factor combination

70kV 、2mA

The combination value of the maximum loading factor

70kV 、2mA 、2s

Nominal electrical power

0. 14kW（70kV 、2mA 、0. 1s）

Maximum inverter frequency

80kHz

Tube voltage

70kV

Tube Current

2mA

Loading time adjustment range

0.02～2s   （Segment adjustment）

Rated frequency

50/60Hz ， ±1Hz

Power supply internal resistance

<      2 Ω

Focus to skin distance

≥200mm

X-ray field

round，diameter≤60mm

Total filtration

>2.5mm Al

Additional filtration

1.5mm Al

X-ray tube model

XD10DF-0.2/70

Surface leakage radiation

≤0.25mGy/h（70kV、2mA、2s）

Operation Mode

Intermittent loading operation

X-ray tube parameters

Target

Tungsten

X-ray tube anode target angle

15º

Focus nominal value

0.4mm

Maximum filament current

2A

Maximum filament voltage

2.35~3.35V

Nominal voltage

70Kvp

Maximum continuous cooling power

80W

Intrinsic filtration

0.75mmAL
