OSA- F058X-C
osakadental
901849900

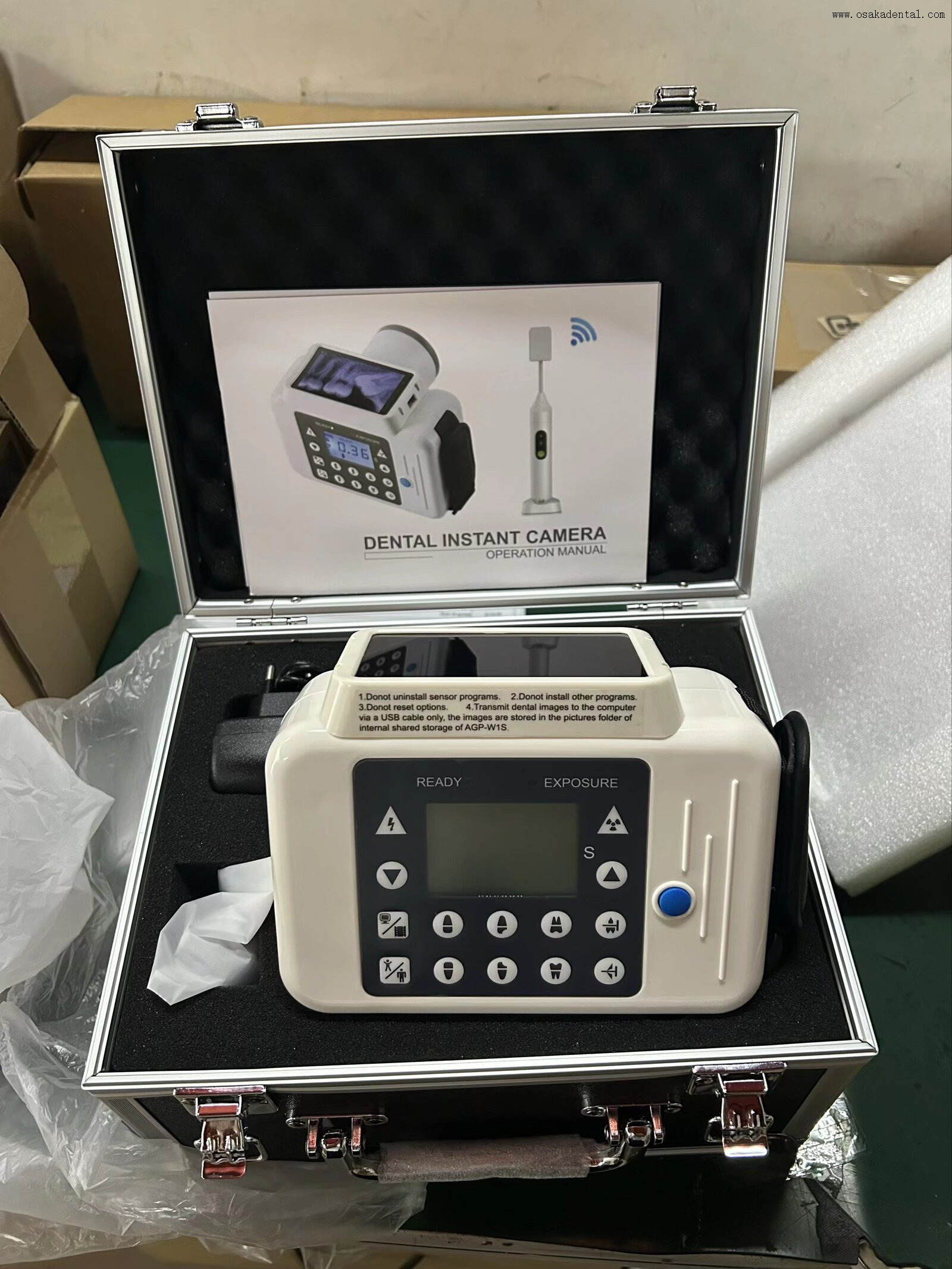

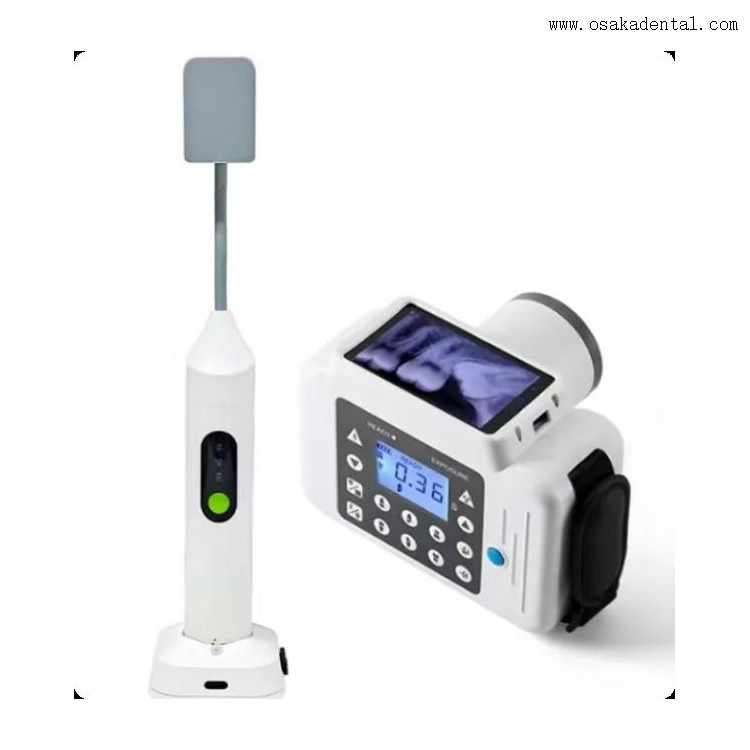

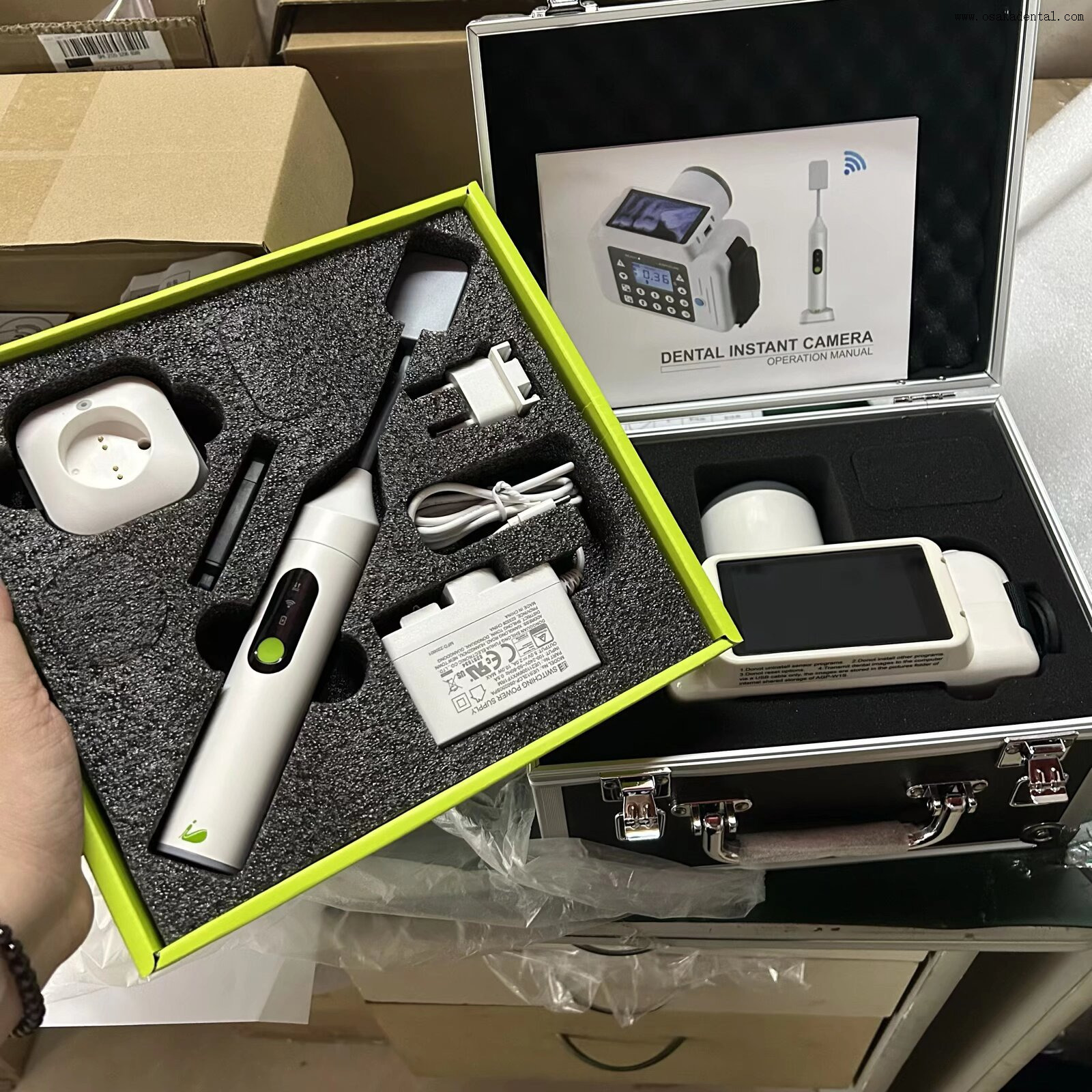

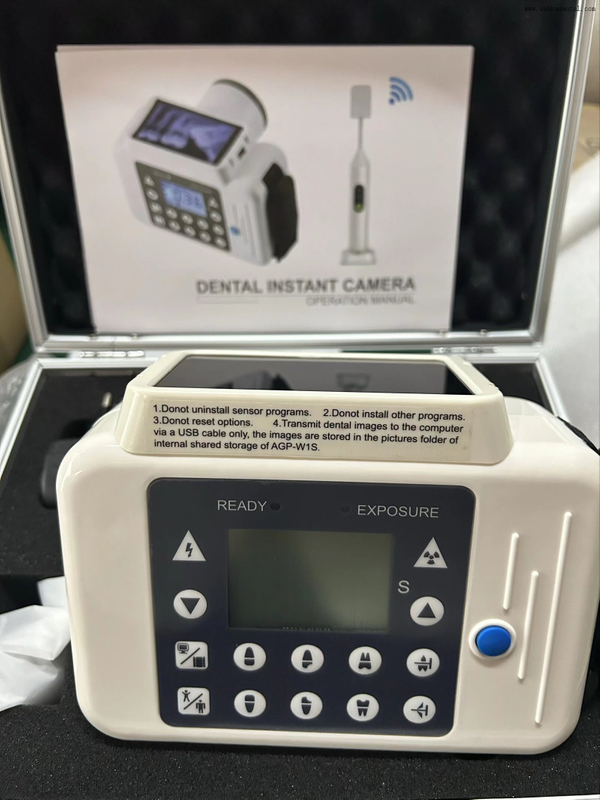

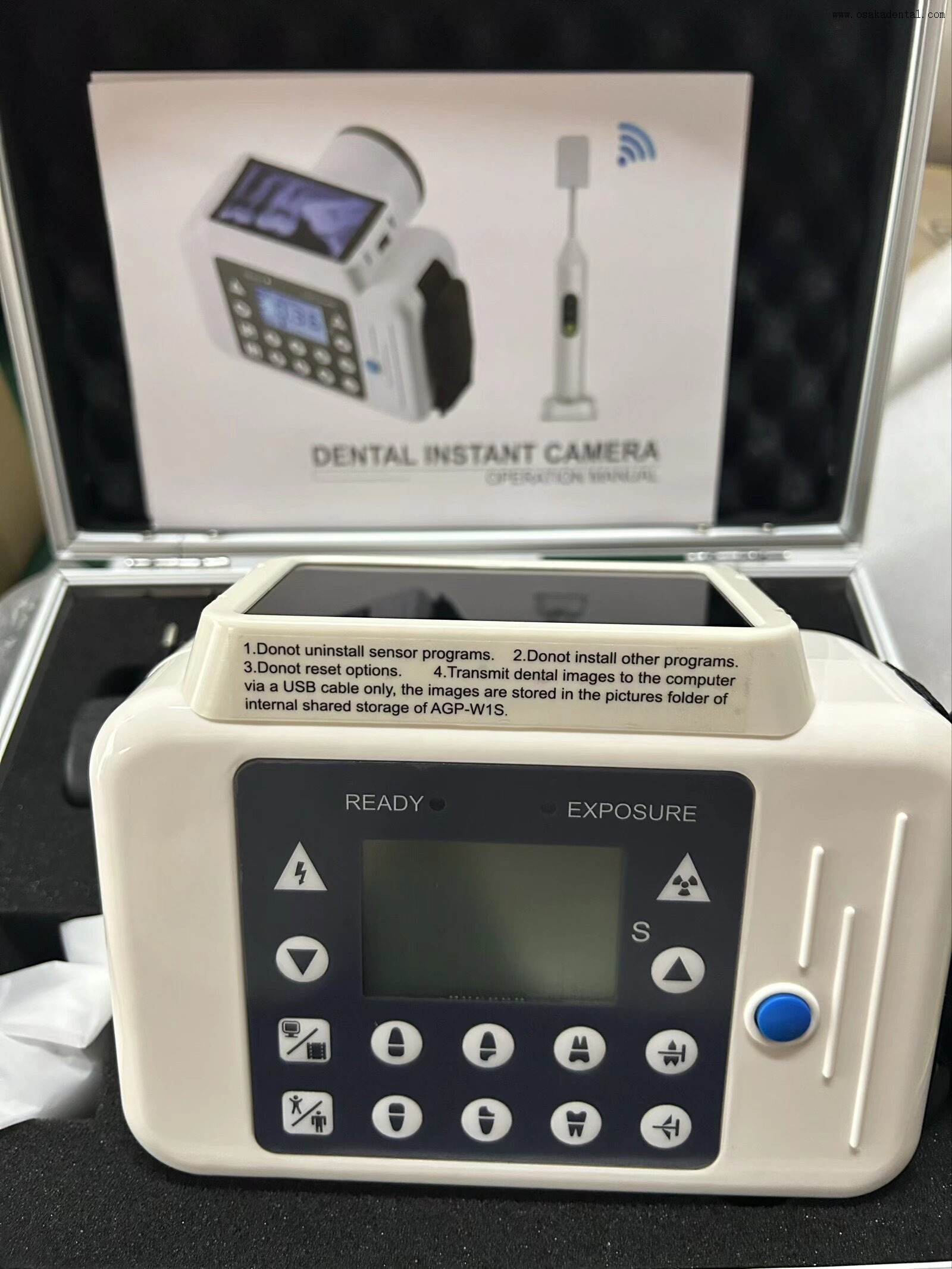

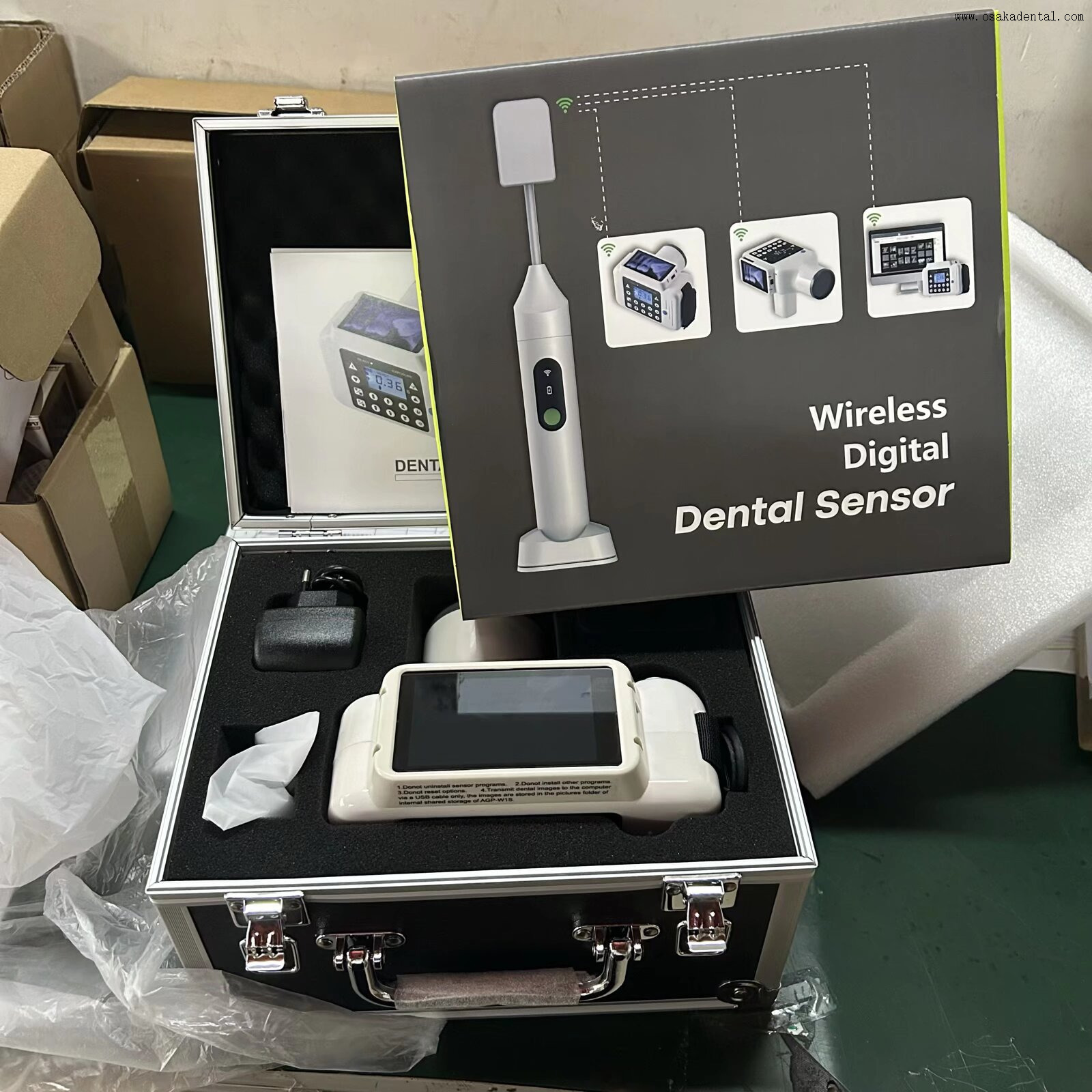

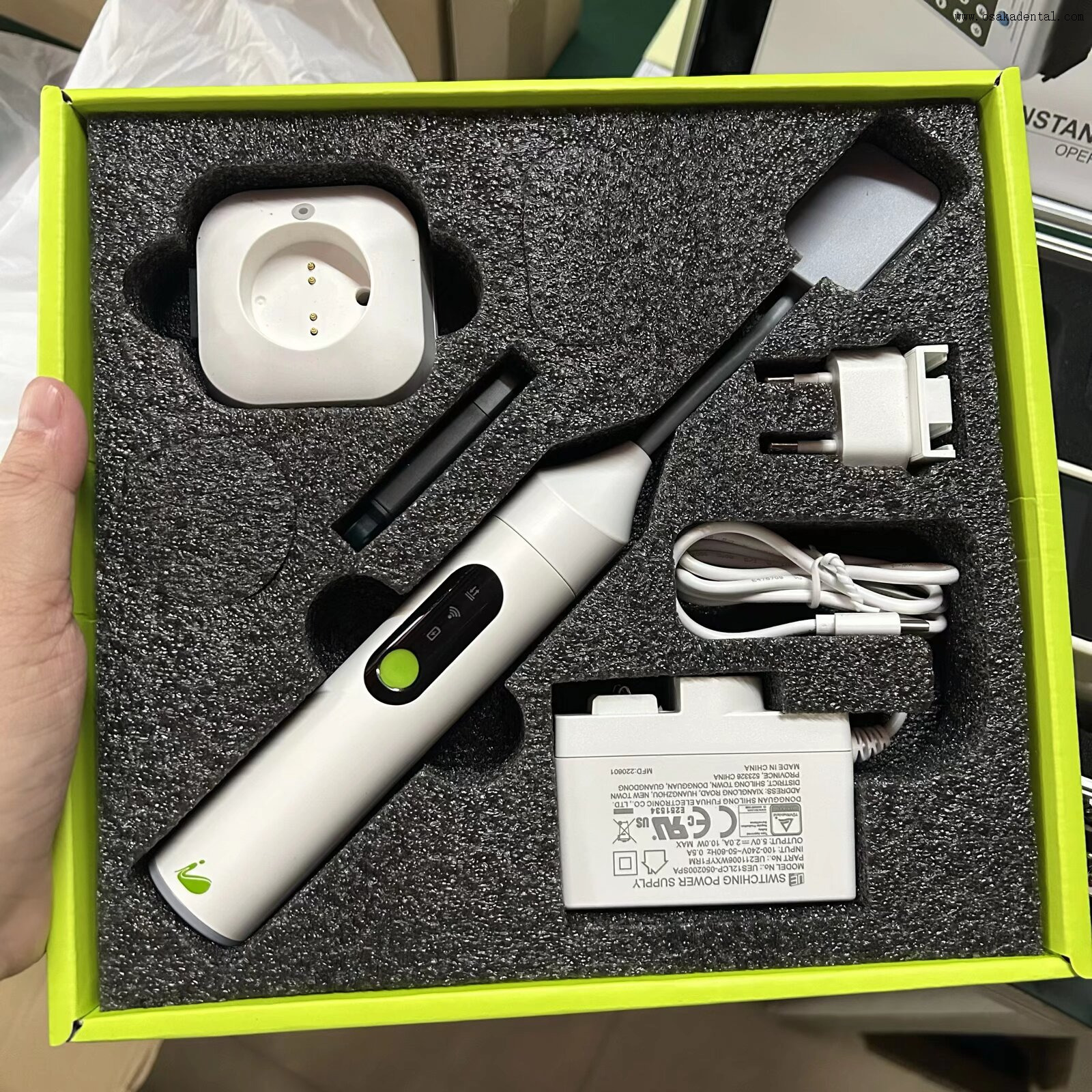

OSA- F058X-C,Dental X Ray Unit with Wireless Sensor
Independent Operation: Functions seamlessly even without the sensor connected.
Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different
setups.
X ray unit specification:
Mechanical Dimensions (mm²):32.0 × 31.0 × 272.0
Active Area (mm²):26x36
Pixel Matrix:(2.34 M) 1300× 1800
Sensor Technology:APS CMOS
Scintillator:Directly deposited CsI:TIPixel Pitch (um):20
Battery Autonomy (h):5
WIFI:2.4G and 5.8G, IEEE802.11 a/b/g/n
Weight (kg):0.13
Theoretical: 25 Ip/mm:Spatial Resolution (Ip/mm)
Actual: 14～ 16 Ip/mm (High Sensitivity):18～20 Ip/mm (High Resolution)
Gray Level:16 bit,65535 grade
Exposure Mode:Smart AED
Ingress Protection of sensor:IP68 for Soak disinfection
Additional:Support TWAIN protocol
Operation System:Windows 7 and above,32/64 bit
Operating Temperature ("C):10~40
Storage & Transport Temperature with Package ("C):-20~55
Operating Humidity (% RH):20~90 (Non-Condensing)
Storage & Transport Humidity with Package (% RH):10~95 (Non-Condensing)
