Oral Therapy Equipments & Accessories
OSAKA
OSA-E13-2
Guangdong, China (Mainland)
Class II
AC100-240V, 50/60HZ
2W
4.2V
FEATURES:

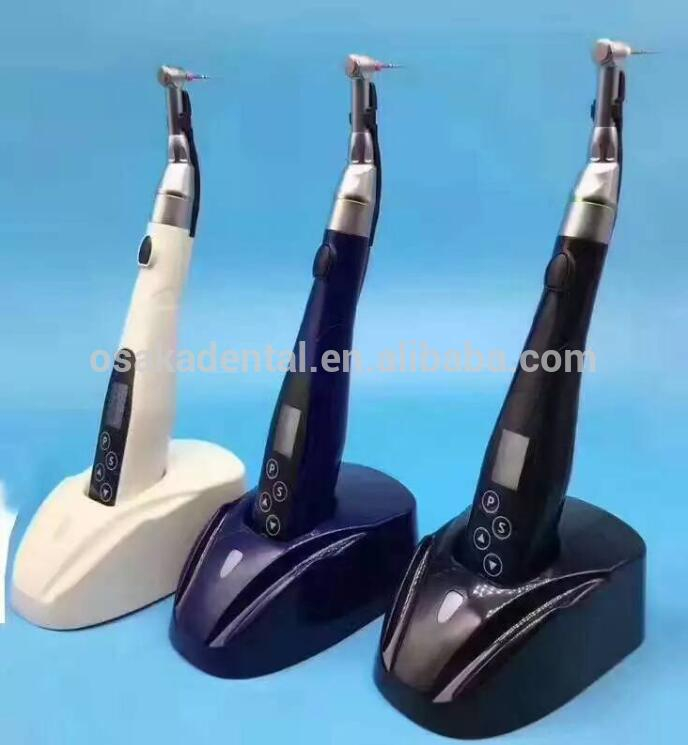

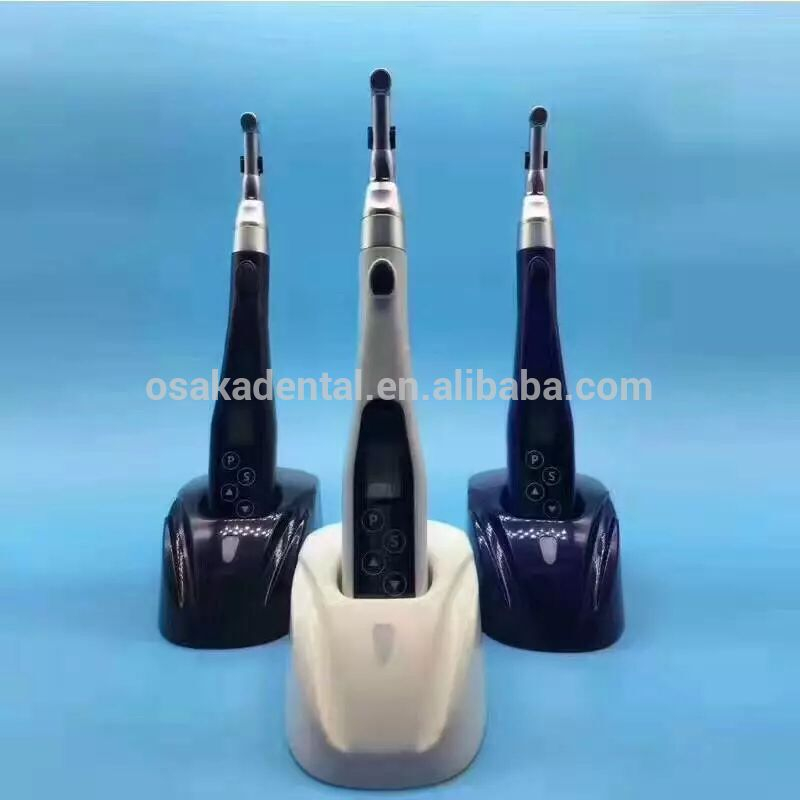

1) Cordless endo motor, compact, flexible and easy to operate;
2) LCD display with LED backlight, easy to discern at any angle;
3) Original imported medical brushless motor;
4) Four kinds of gear ratio are selectable. Rotation speed and torque are both adjustable;
5) Program memory function: it can store nine kinds of commonly used gear ratio, rotation speed and torque according to different clinical needs;
6) Three automatic control modes: Auto Stop, Stop after Auto Reverse, Forward after Auto Reverse;
7) 1:1, 10:1, 16:1, 20:1 mini contra angles are compatible. Standard configuration is 16:1;
8) Comes standard with two large-capacity Li-ion batteries, easy to replace, to avoid the main unit can not be used in the case of charging.
TECHNICAL SPECIFICATIONS:
Charger:
1) Input Power Supply: AC100-240V, 50/60HZ;
2) Output Power: 2W;
3) Output Voltage: 4.2V;
Main Unit:
1) Battery: Rechargeable Li-ion Battery, DC3.7V/1100mAh;
2) Contra Angle: 1:1, 10:1, 16:1, 20:1. (Victory’s Standard Configuration: 16:1);
3) Stored Programs: 9 types;
4) Rotation Speed, Ratio, Torque:
Rotation Speed Range(rpm) | Gear Ratio | Torque Range(N.cm) |
200-800 | 10:1 | 0.2-2.0 |
150-550 | 16:1 | 0.3-2.8 |
100-450 | 20:1 | 0.4-3.5 |
2000-9000 | 1:1 | 01-0.18 |
