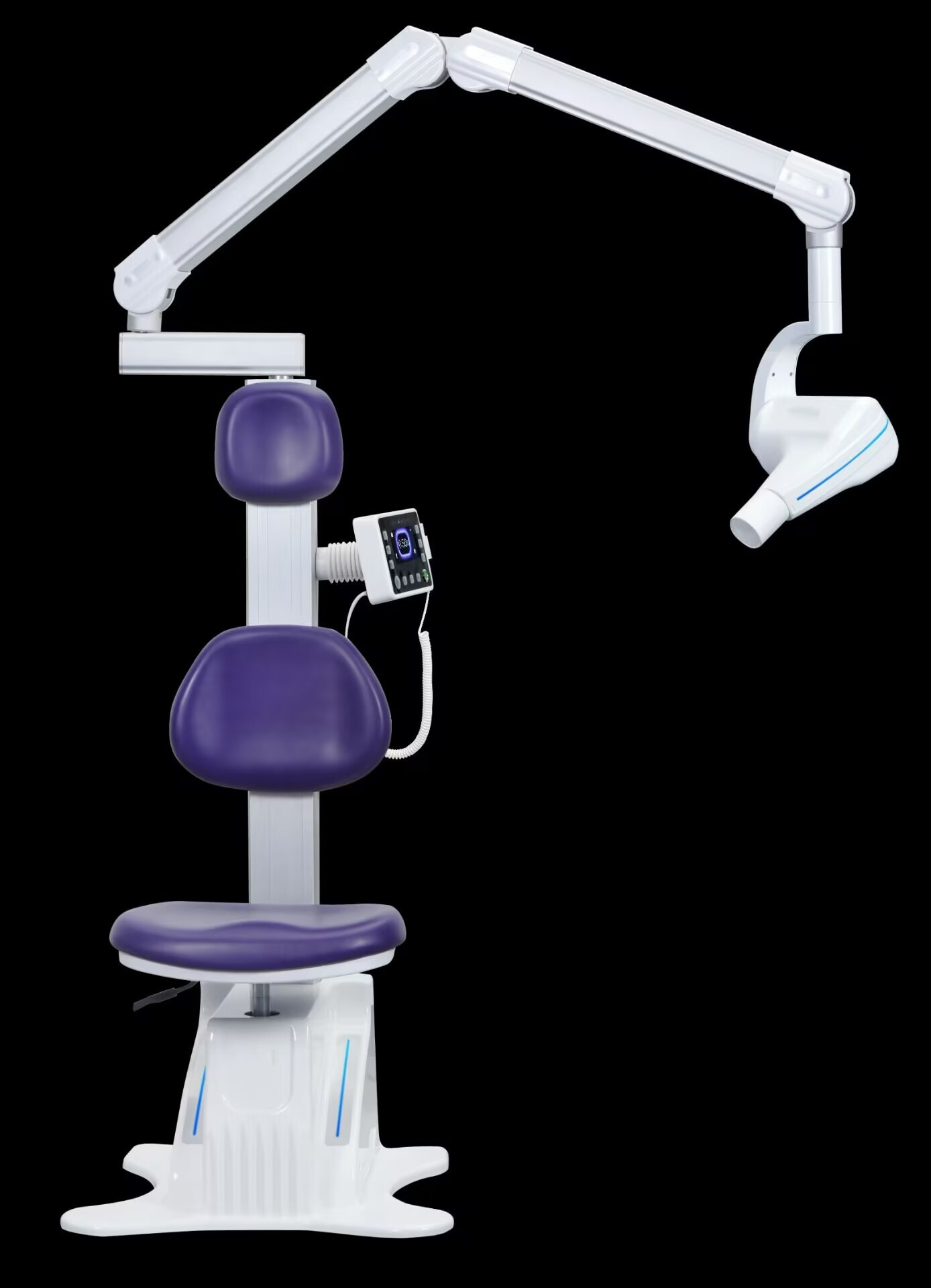

New X Ray Unit with Stool

New X Ray Unit with Stool

（1）Status Display ：

a. Green cycle display breathing --- standby state; b. Green constant light --- ready state; c. Yellow constant light --- loading state

（2）X ray source components：

It is composed of an X-ray tube assembly (see Figure 8), a high-voltage transformer (including a filament transformer), and a voltage-doubling rectifier device assembled in a tube shell and filled with vacuum oil or Rubber.

(3) Beam limiting tube: The useful wire bundle diameter at the end face of the beam limiting tube is ≤Φ60mm.

(4) Focus: The distance from the focus to the skin is ≥200mm.

(5) Exposure switch: After pressing the ready button, press and hold this switch to perform X-ray exposure operation.

(6) Battery: a. Nominal voltage --- 21.6V⎓; b. Charging voltage: --- 25.2V⎓; c. Capacity --- 3000mAh.

(7) Exposure hand switch interface: For connecting an external exposure hand switch.

(8) Charger interface: For battery charging connection, charging voltage: 25.2V⎓, charging current: 1.0A.

(9) Machine nameplate: Machine nameplate

(10) Power switch: Press it, the green indicator light will light up, and the machine power will be turned on; it will automatically shut down if there is no operation.（11）Control system: The operation interface is shown in Figure 3, and the description of each icon is shown in Tables 3, 4, and 5

a. Loading time display---The loading time corresponding to the mode and tooth position on the display interface.

b. DR/Film mode switch key---Press it once to switch between DR mode and film mode.

c. Tooth position selection key---Press it to enter the tooth position selection interface (see Figure 4) and select the shooting tooth position.

d. Adult/Children switch key---Press it once to switch between adult mode and child mode.

e. Ready button---Press it to enter the ready state, and the state display is always green.

f. Minus key---Press it once to decrement the original displayed loading time by R10 series.

g. Plus key---Press it once to increment the original displayed loading time by R10 series.

h. Battery display---Displays the current battery power.
