Product Description

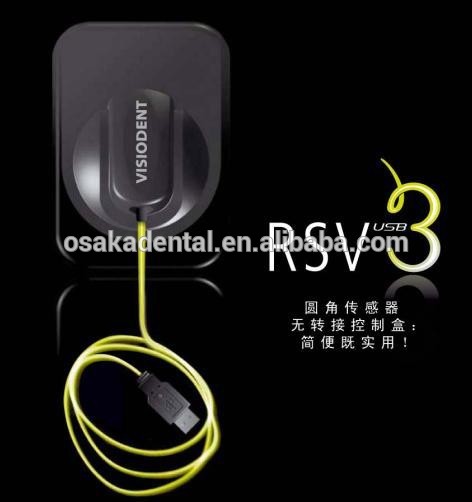

1.Improved Ergononomics:
RSV3 Sensor has been designed to further appreciate the shape of the oral cavity of the patient. Thanks to its rounded corners and smooth edges the patient's comfort has been optimized while making the sensor positioning easier.
2,A sensor without controller box:
The embedded electronics of the RSV3+ system is so miniaturized that everyting is located in the sensor case! There is no need to find a place for the controller box on your work space. with hot plug & play technology, you just need to plug the USB connector in your computer: You are now ready to take an X-ray. Sometime less is more!
3.High resolution:
Available in two size (Size 1 and Size 2), the RSVs+ sensors will give you high resolution images. with a theoretical resolution of 26.3 lp/mm coupled with a CMOS technology and a scintillator the images is exceptionally sharp with great clarity.
4.Acquisition rapidity:
RSV3+ sensor operates in USB2.0 full speed mode, The high resolution image will instantaneously appear on your computer screen.
5.New CMOS sensor with fiber optic:
The family of Visiodent sensors expands with the brand new CMOS sensor with fiber optics.
More sensitive thanks to its new fiber optics, the new RSV3+ is the synthesis of the most advanced technology: scintillator, fiber optic and CMOS High Resolution for the best image quality.
Specifications:
1.external dimension: 36.72mm*24.35mm
2.sensor technology: CMOS
3.theoretical resolution: 26.3lp/mm
4.real resolution: >20lp/mm
5.pixel size: 19um
6.active surface 30.02mm*19.95mm
7.sensor cable length: 3meters
