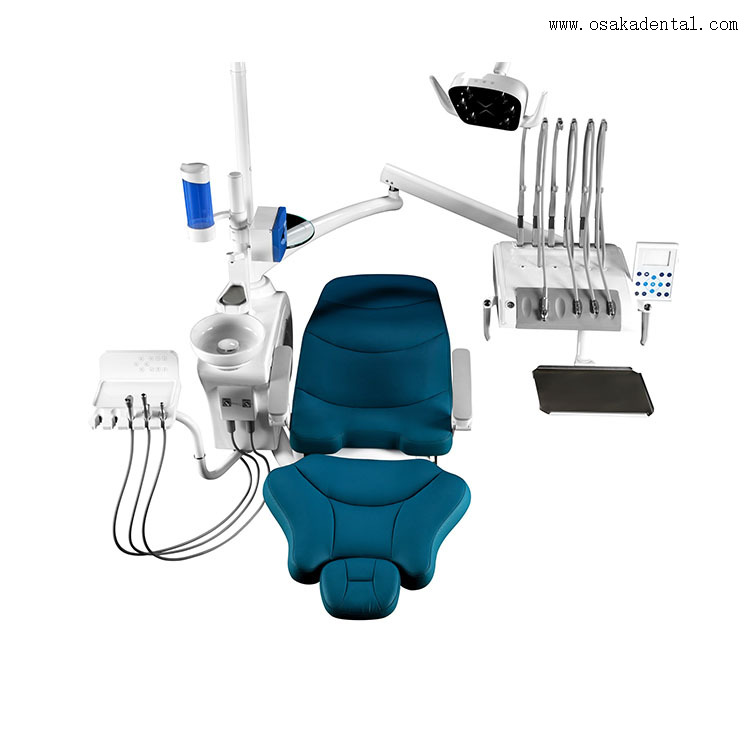

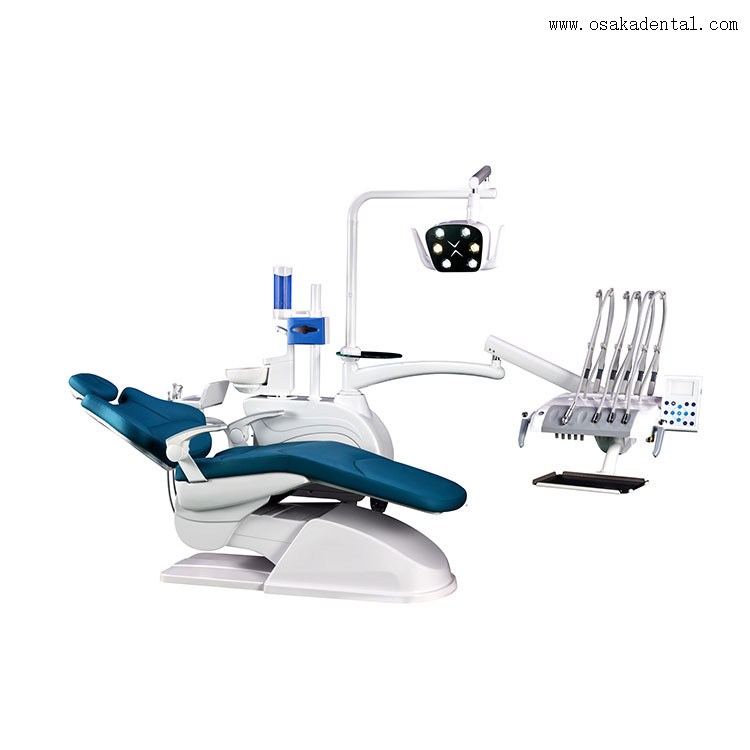

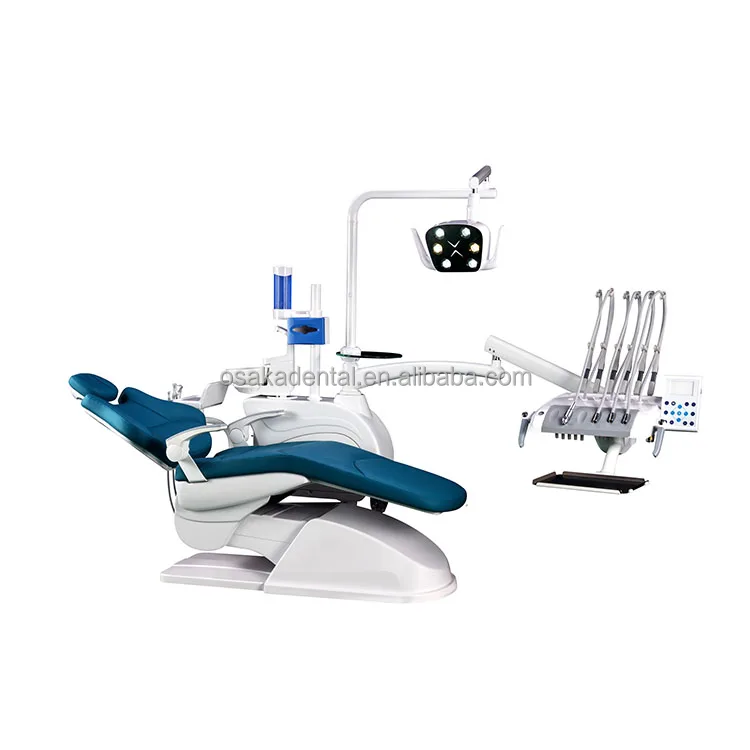

Top Mounted Tray High Quality Dental Chair Unit

Top Mounted Tray High Quality Dental Chair Unit

The primary function of a dental chair is to provide a comfortable and supportive seating arrangement for patients during dental procedures. It allows dentists to adjust the position of patients to facilitate optimal access and visibility during treatments, ensuring efficient and effective dental care. According to the treatment needs, the manipulation and control of the switch can press the twist, and the dental chair can complete the movements of ascending, descending, bending, bending, and resetting.

Advantage:

Perfect for perfectionism
Quality: Over 200KG weight supplied, gear motor with big torque force , long lifespan and steady quality
Profession: Top-mounted tray with intelligent controls
Affordable Luxury: Six led bulbs lamp dual-color
Humanization:Humanized functions for high effective work experience
Fashion: Fashionable designed side box which meets the high end taste

Major Parts
1.Thermostatic water heating system (applied to cup filler and three-way syringe):1set,
2. Spittoon fushing and cup filling system (water supply amount can be preset): 1set,
3.Quiet electric lift chair (large size,with adjustable pillow,double armrests): 1set,
4.Main table integrated with control panel, with 5-slot tool holder: 3 for handpiece tubings,1 for three-way syringe, 1 open for optional use: 1set,
5.LED film viewer:1set,
6.Assistant control panel with 5-slot tool holder. 2 for saliva suctions/strong&weak,1 for three-way syringe, 2 open for optional use: 1set,
7.Rotatable ceramic spittoon:1set,
8. Refector LED sensor dental light (cold light,gradual brightness adjustment):1set,
9.Multifunction pedal switch (for water/air supply,chair movement etc.):1set,
10.Pure water bottle 600ml (removable,air pressurized,switch control): 1set,
11.Tissue box and cup holder unit:1set,

12.Small glass tray:1set,

13.Dentist stool with backrest: 1set.

Technical Specification
Supply voltage:AC110V/220V 60Hz/50Hz
Motor voltage:DC24V
Air pressure:0.5MPa-0.8MPa
Water pressure:0.2MPa-0.4MPa
Handpiece Tubing:2/4-hole optional

item No.:	OSA-S4
Product name	Dental Unit
Color	red, blue,green, orange, black
Packing	150X103X116cm, 255kg
