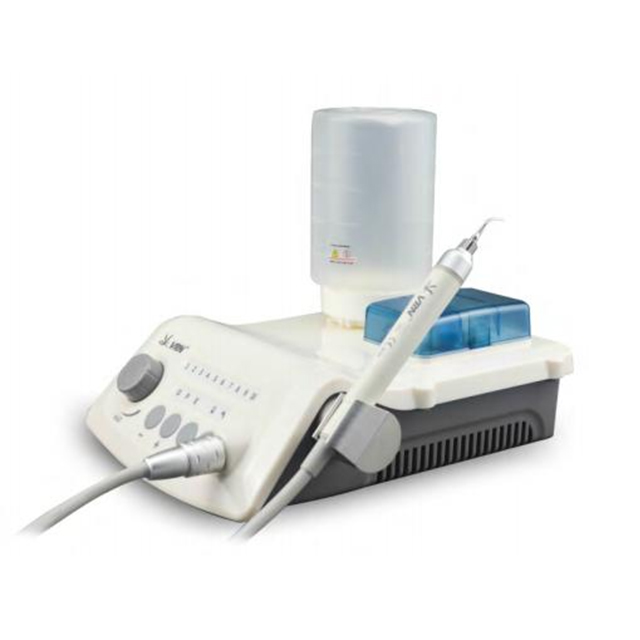

Wireless Control Dental Ultrasonic Scaler With LED Detachable Handpiece OSA-A8

Wireless Control Dental Ultrasonic Scaler With LED Detachable Handpiece OSA-A8

1.Operating mode:G, P, E

2.LED handpiece:Yes

3.Water type:Bottle / External access to water

4.Function switch button:“Water”, used to switch water sources

5.Wireless foot control:Yes

6.Cable used to connected the main unit:Detachable

7.Operating tips:G1,G2,G4,P1,E1

 Technical Specification

Automatic Frequency Tracking;Patented Liquid Pumps, Digital Controlled.

Function: Scaling, Perio, Endo

1.Power supply:

For AC adapter: 100-240vac. 50-60Hz. 1 2AMax

Output 30Vdc. 1.3A

For main unit: 30Vdc. 1.3A

Wireless control fool pedal battery: 1.5VX2

2.Receiving sensitivity: -114dB

3.Primary vibration excursion of the tip:

(a)Minimum, 1um, Deviation -50%

(b)Maximum. 100um, Deviation +50%

4.Output half-excursion:

(a)Minimum, O.1N, Deviation -50%

(b)Maximum. 2N, Deviation +50%

5.Vibration frequency of the tip: 25-31KHz

6.Input power: 30VA- 48VA

7.Ultrasonic output power: 3W-20W

8.Fuse: 125V 1.5A

9.Water pressure: O1MPa-0.05MPa

10.Weight of main unit: 0.75kg

11.Size: 230mmx 155mm x 56mm

12.Working conditions:Temperature 5℃-40℃Relative humidity ≤80% Atmospheric pressure 75KPa-106KPa.
