OSA-F062-S3
OSAKADENTAL
9018499000

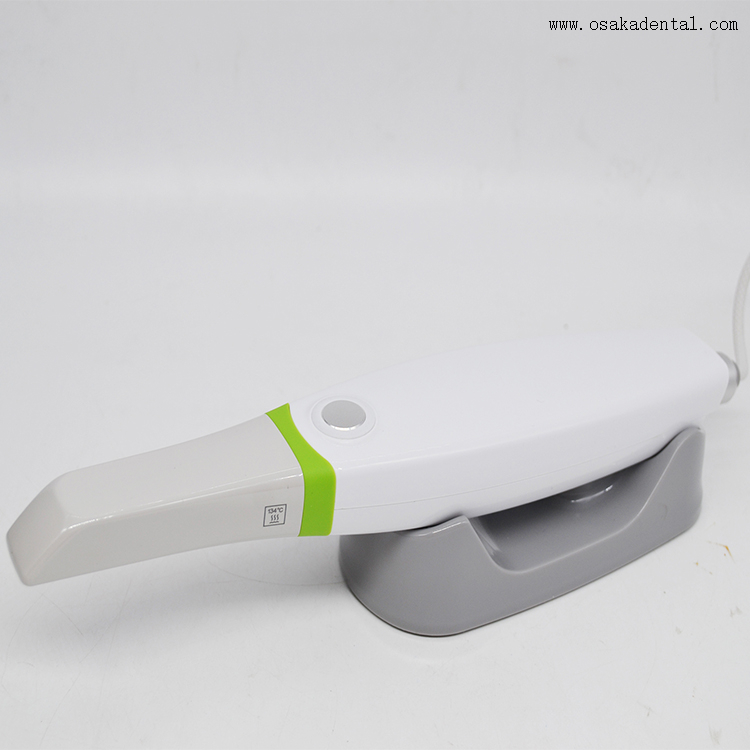

Dental Intraoral Scanner for Digital Dental Impression
An intra-oral scanner is a handheld wireless device used by dentists to scan a patient's teeth and gums. It creates an immediate 3D impression of your teeth, gums and dental bite that can be viewed by both dentist and patient on a chairside screen in real time.
Our Strength
Our intraoral scanner has fast and easy image capturing technology, which can provide reliable, accurate&camplete data for digital dental impression. Providing patients with a comfortable and treament experience, our scanners make it easier for dentist to diagnose and communicate with patients. Our scanner is an open system scanner, which provides the access to the latest technology equipment available in the market. I has a range of applications which includes digital restoration, digital orthodontics, navigation template of digital implant, ect.
Technical principle | 3D Structured light |
Main unit weight | 480g |
Main unit size | 306x48.5x57.5mm |
Scan tip section size | 20x18mm, Internal heating |
Scan tip sterilization | Support high-pressure steam sterilization, about 100 times |
Precision | 20um |
Accuracy | 20um |
Scan speed | Full arch 60s |
Field depth | 0~15mm |
Frame rate | 10~15 frames/sec |
Scan range | 16x14mm |
Remote control | Yes |
Light source | LED |
Camera sensor | High rate CMOS |
Interface | USB 3.0 |
Wire length | 2m |
Power supply | DC12V 2A |
Al Scan | Yes |
Intraoral camera | Yes |
Output format | STL, PLY |
PC configuration requirements | Processor(CPU): 8th generation Intel i5(4 cores 8 threads) and above Memory: 16GB and above Hard Disk: 512G and above Graphics card(GPU): NVIDIA GTX 1060 6GB DDR3 and above Operating system: Windows 10(64-bit) or higher Display: 1920x1080, 60Hz and above Interface: at least 1 type A USB 3.0 port |
Gross weight | 480g |
Package size | 306x48x57mm |
