Dental autoclave with 18 Liters with dental handpiece and dental instrument and dental sealing machine

Share to:

Dental autoclave with 18 Liters with dental handpiece and dental instrument and dental sealing machine

Availability:

Quantity:



Inquire Add to Basket

Model:
OSA-322D-18L
Brand:
OSAKADENTAL
Code:
9018499000

Product Description

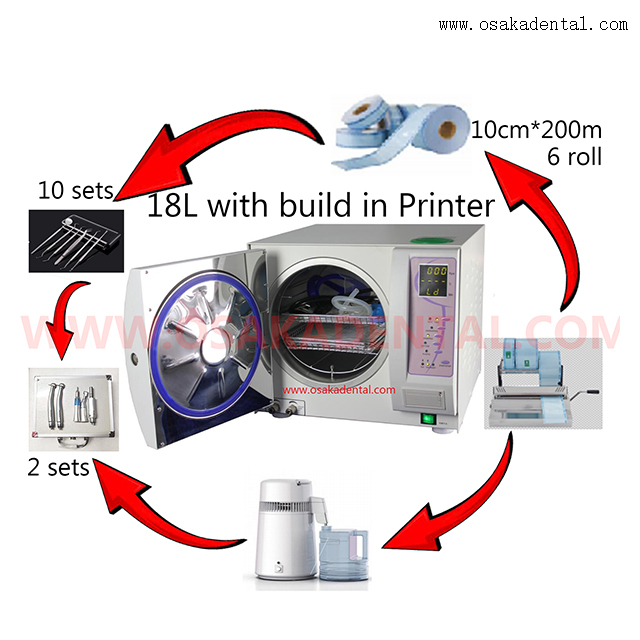

Dental autoclave

OSA-322D-18L with built-in printer

322d auroclave

1 ． General Introduction

This Autoclave is a precision instrument specializing in the operation occasion in

need of simple, fast and efficient sterilization by the doctor or his/her assistants,

and the doctor shall take the responsibility for such work.

This Autoclave is specially designed for the occasions in use of frequent

sterilizations. It is equipped with the microprocessor for intelligent control and

man-machine interface for convenient operation. With the distinctions in

displaying parameter and condition actively, evaluating malfunction automatically,

shutting off for self-protection automatically in case of excessive temperature and

pressure, this type autoclave is reliable product in sterilizing.

1. Power source socket

2. Fuse

3. Water exit of water tank

4. Waste water exit

2 ． Application Scope

The autoclave could sterilize （ 121 ℃ or 134 ℃ ） the tooth & operation device,

Sanitary material and other heat-resisting articles of the Dept. like Stomatology,

Ophthalmology and Lab. Not for liquid & hermetical device’s sterilization.

3 ． Tech. Parameter

Chamber size of the autoclave (Diameter X Depth) 8L…… 170mmX310mm

Chamber size of the autoclave (Diameter X Depth) 16L……230mmX360mm

Chamber size of the autoclave (Diameter X Depth) 18L……249mmX355mm

Chamber size of the autoclave (Diameter X Depth) 22L……249mmX450mm

Rated Voltage………………………………………220V ± 22V, 50Hz ± 1Hz

………………………………………110V ± 11V, 60Hz ± 1Hz

Rated Power……………………………………… 1800VA

2000VA

Sterilizing (Pressure/temp.)…………………………………100-120KPa/121 º C

200-220KPa/134 º C

(Both of above are under Standard Atmospheric Pressure)

Fuse-Melting pipe……………………….. ……. T15A

T30A

Capacity of water tank………………………………………………………2L

Probable water consumption of one cycle …………………………….. . .0.4L

Environment temperature of operate……………………………………0-40 º C 4

4 ． Diagram Specification

Attention and warning

I Sort B model device

Protective Grounding

5 ． Installation

The clearance between the exterior side surface of the autoclave and the ambient

neighboring articles shall be 10cm as retained, and the top surface shall be 20cm

retained.

The air-cooling window attached to the exterior surface of the autoclave shall be

non-clog by dust or articles, and the autoclave shall be located in the proper air

flowing environment by recommendation of the supplier.

Autoclave shall be installed on the horizontal working base. 2pcs front feet

can be adjusted the height to ensure the front of machine slightly higher than

the back.
