Instruments Used in Dental Implant Procedures

Dental implant procedures rely on a range of specialized instruments, from basic diagnostic tools to advanced motorized systems. These instruments can be broadly categorized into diagnostic, surgical preparation, implant placement, and advanced technology tools.

️ Basic Diagnostic and Surgical Instruments

Before any drilling begins, standard surgical setups are required:

Diagnostic tools: Dental mirrors and probes for examination.

Soft tissue management: Scalpels, retractors, needle holders, and sutures.

Sterile supplies: Surgical wipes, gauze, and irrigation lines .

Bone Preparation Instruments

The core of implant surgery involves preparing the osteotomy (bone site) with precision to avoid overheating the bone .

Drills (Burs): Used in a sequential manner, starting with small diameters and progressively widening the site. They often feature internal or external cooling channels to manage heat .

Osteotomes: Hand instruments or powered tips used to compress bone laterally (especially in soft bone) to improve density and stability .

Bone Taps: Used in dense bone to pre-cut threads for the implant, reducing insertion torque .

Implant Placement and Torque Control

Once the site is ready, specific tools handle the implant fixture:

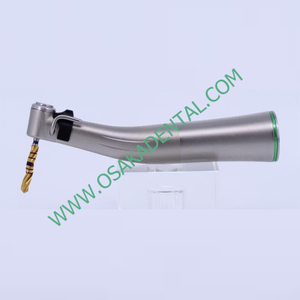

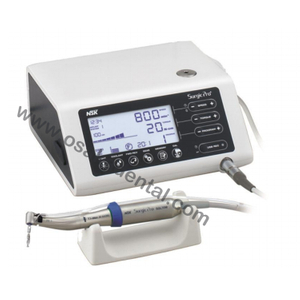

Insertion Tools: Manual or machine-driven connectors (handpieces) that carry the implant to the site .

Torque Wrench/Ratchet: A critical manual instrument used to apply the final tightening force, ensuring it does not exceed the manufacturer's limit (often around 45 Ncm) .

Depth Gauges: Used to verify the depth of the prepared hole before insertion .

Advanced and Guided Instrumentation

Modern techniques utilize technology to enhance precision and outcomes:

Guided Surgery Kits: These include specialized drills, guide rings, and sleeves that fit into a surgical template (based on a CBCT scan) to dictate the exact angle and position .

Navigation Systems: Stereotaxic instruments or dynamic navigation systems track the handpiece and patient in real-time to guide placement .

Stability Measurement (ISQ): Devices like the Osstell Beacon use resonance frequency analysis to objectively measure implant stability (Implant Stability Quotient) .

Magnetic Mallets: An innovative alternative to traditional mallets for osteotome techniques. These use electromagnetic shock waves to provide controlled, precise impacts for bone manipulation and sinus lifting without the discomfort of manual hammering .
