Dental 1 Second Led Curing Light with Four Working Models
A dental curing light is a piece of dental equipment that is used for polymerization of light-cure resin-based composites. It can be used on several different dental materials that are curable by light. The light used falls under the visible blue light spectrum.

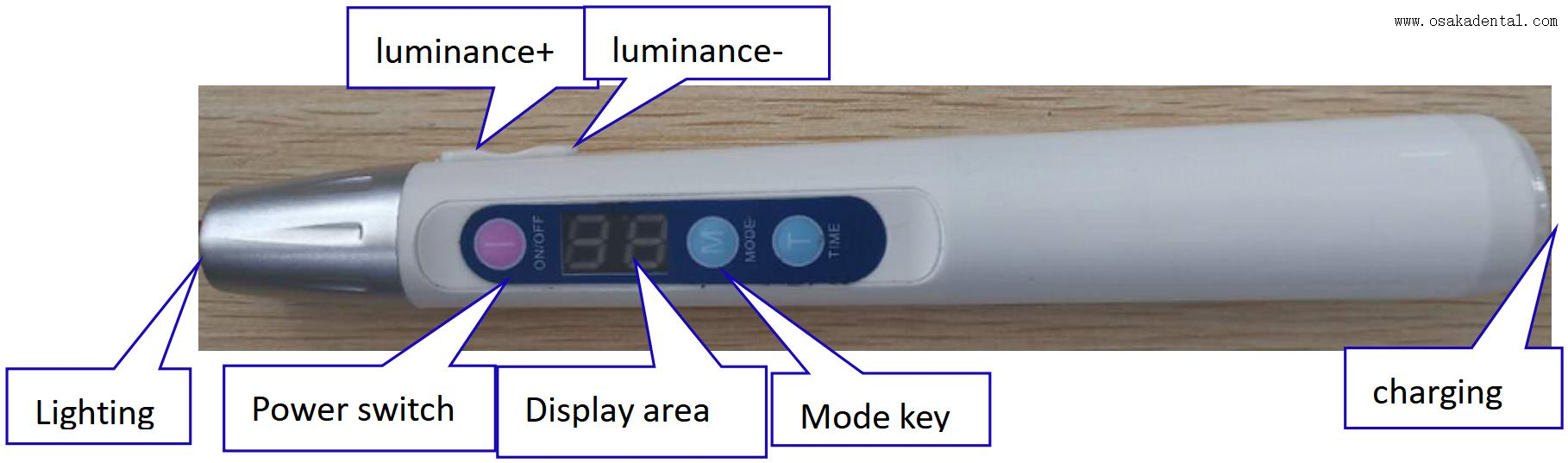

1. Function button instruction
Intensity key：adjust luminance
Power switch：ON/OFF,lighting ON/OFF
Mode key：F0,F1,F2,F3. four working modes
Time setting key：Corresponding mode time selection, adjustment
Display area：time indicator
2.Function Instruction：
a) Press the power switch,the machine be standby state.
b) Mode key：F0,F1,F2,F3 four working modes，
F0 mode: 1 second mode
During the working time 1-5S, you can choose 1s 3s or 5s,luminance output 100%（can not be adjustment）
F1 mode：strong mode
During the working time 5-40S ，the machine is lighting with high power. you can press the side key “+ -” to adjust luminance,40%-100% can be adjustment,the luminance will be +1%/-1% per operation.
F2 mode：gradually strong mode
During the working time 5-40S ，the machine light power is gradually strong in the first 10 seconds,and then remaining time is lighting with constant high power . You can press the side key “+ -” to adjust luminance, 40%-100% can be adjustment,the luminance will be +1%/-1% per operation.
F3 mode：flashing mode
During the working time 5-40s,the machine works in falshing mode with high power.you can press the side key “+ -” to adjust luminance,40%-100% can be adjustment,the luminance will be +1%/-1% per operation.
c) Press the power switch to stop working,the machine be standby state.
Technical data
Input voltage-----------------AC 110V—240V50—60Hz
Output voltage-----------------DC5V 1000mA
Charging voltage-----------------DC4.2V
Battery capacity-----------------2200mAh
wavelength-----------------455—480nm
Intensity -----------------1200—2600mw/cm 2
