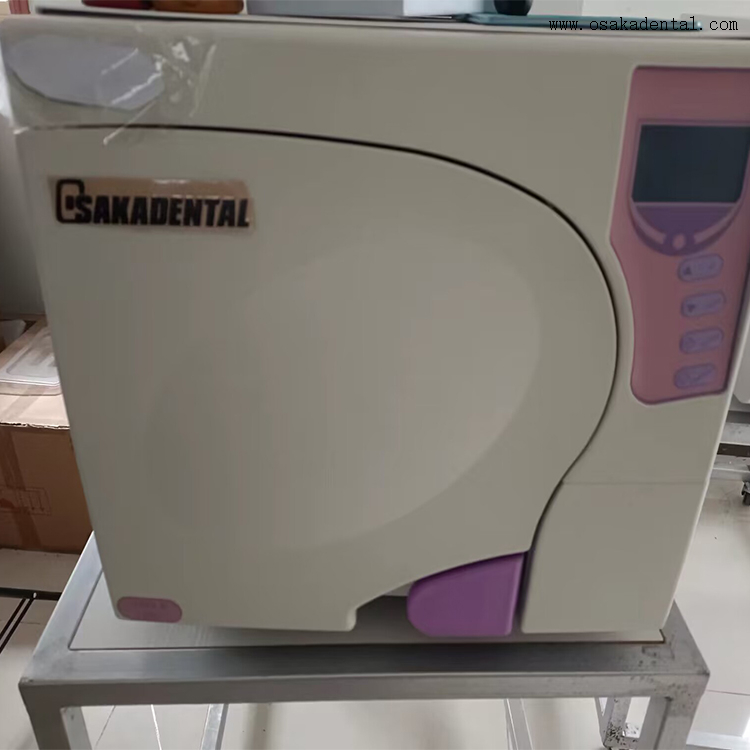

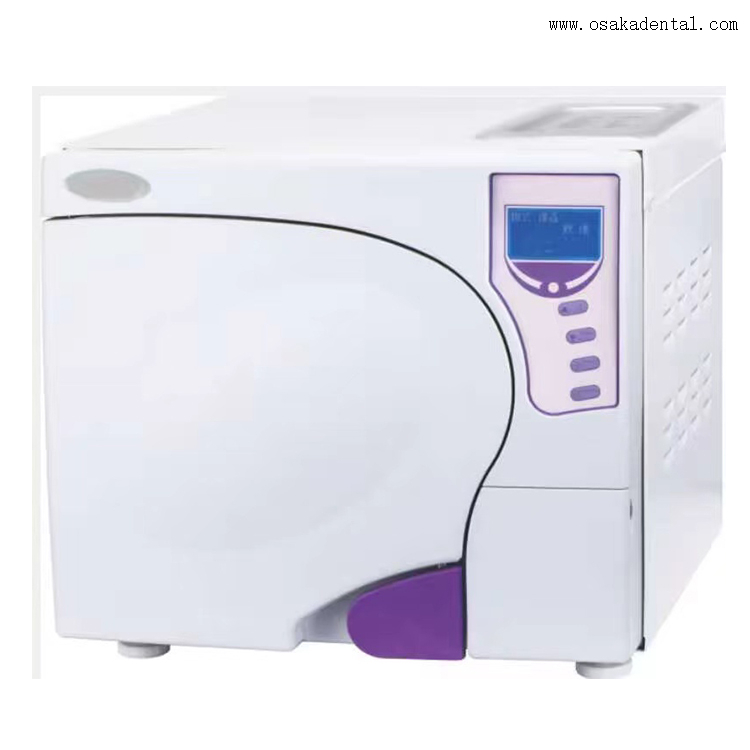

Dental Autoclave Dental Small Pressure Steam Sterilizer
A dental autoclave, also known as a steam sterilizer, is the machine that is used to properly sanitize dental equipment after its use.
| Product Description | |
| Name | Small Pressure Steam Sterilizer |
| Model | SUN23-Ⅲ |
| Scope of Use | The product is used by medical institutions to sterilize medical devices that can withstand pressure and high temperature steam. |
| Working Conditions | Ambient temperature: +5～+40℃ |
| Relative humidity not more than 85% | |
| Atmospheric pressure 70kPa～106kPa | |
| Technical Parameters and Configuration | |
| Rated Voltage | AC220V/50Hz |
| Rated Power | 2000W |
| Door Closing Method | Manual |
| Sterilization Cycle Classification | Class B (CLASS B) |
| Sterilization Temperature/Pressure | 121℃/100～120KPa (under standard atmospheric pressure) |
| 134℃/200～220KPa (under standard atmospheric pressure) | |
| Volume | 23L |
| Inner cavity size | φ249mm X 450mm |

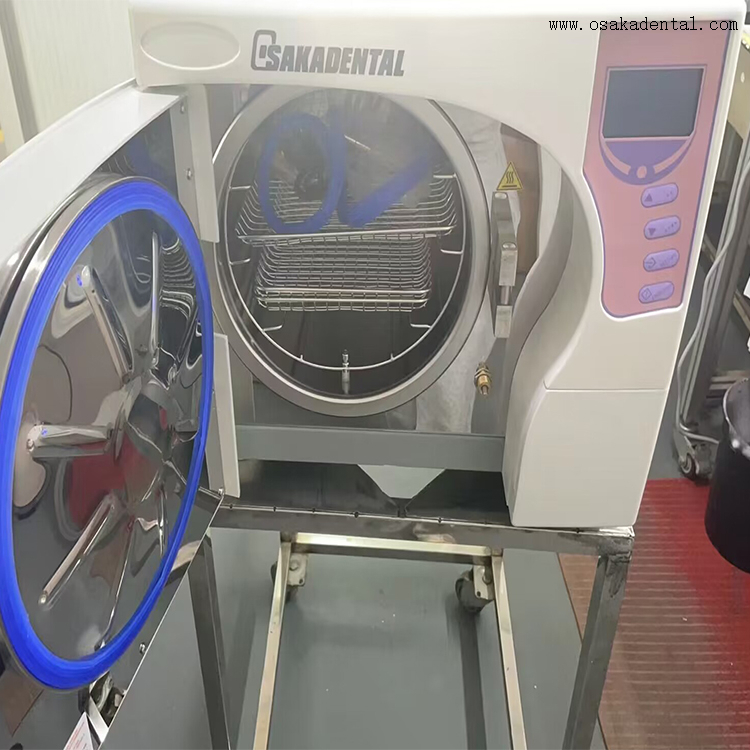

| Sterilization chamber configuration | 3-layer movable instrument tray, 1 instrument rack |

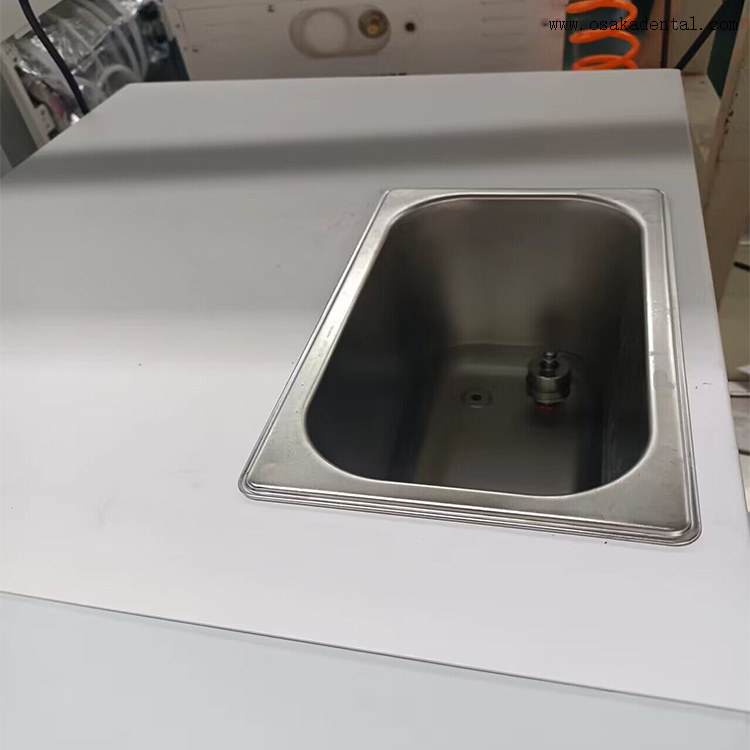

| Water supply system | Open type, stainless steel water tank |
| Clean water tank capacity: 5L; Waste water tank capacity: 3L | |
| Sterilization record | Equipped with built-in printer, optional USB (optional language, text matching) |
| Display | LCD display (optional language, text matching) |
| Appearance size | 610X475X410mm |
| Packaging size | 750X595X520mm |
| Net weight | 45KG |
| Gross weight | 53KG |
| Performance and characteristics | |
| Special sterilization | Inactivation of HIV (HV), hepatitis B (HBV) mad cow virus and spores |
| Drying program | Strong vacuum drying, residual humidity of the instrument <0.2% |
| Testing program | Bowie&Dick steam penetration test, helix spiral test, Vacuum vacuum test |
| Safety device | Safety valve, pneumatic lock, fault self-checking system |
| Cleaning program | Automatic cleaning of internal pipes and steam generator (automatic cleaning every 30 times) |
| Door cover adjustment | The sealing degree of the door cover can be easily adjusted, patent protection |
