OSA-F062-S2
OSAKADENTAL
9018499000
Dental Intraoral Digital Impression Instrument

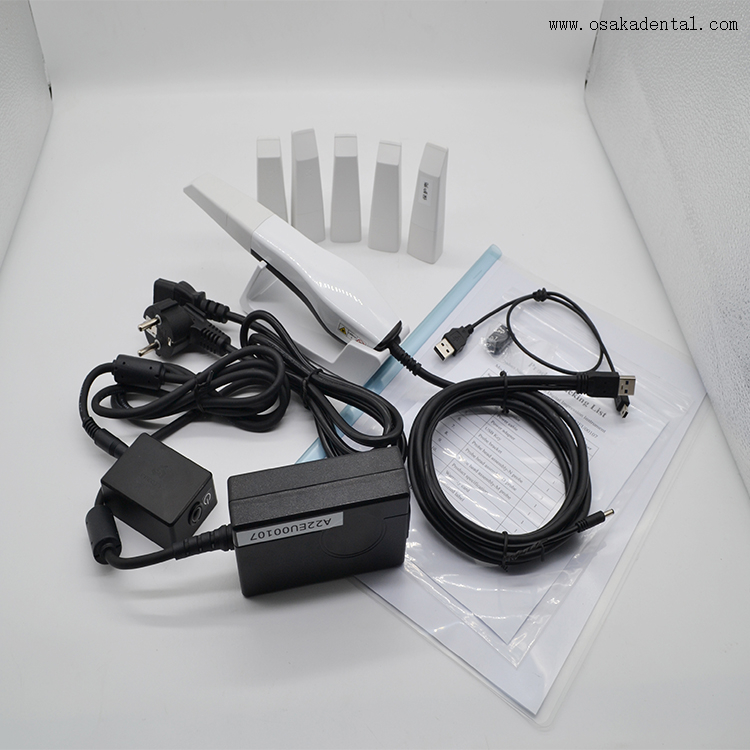

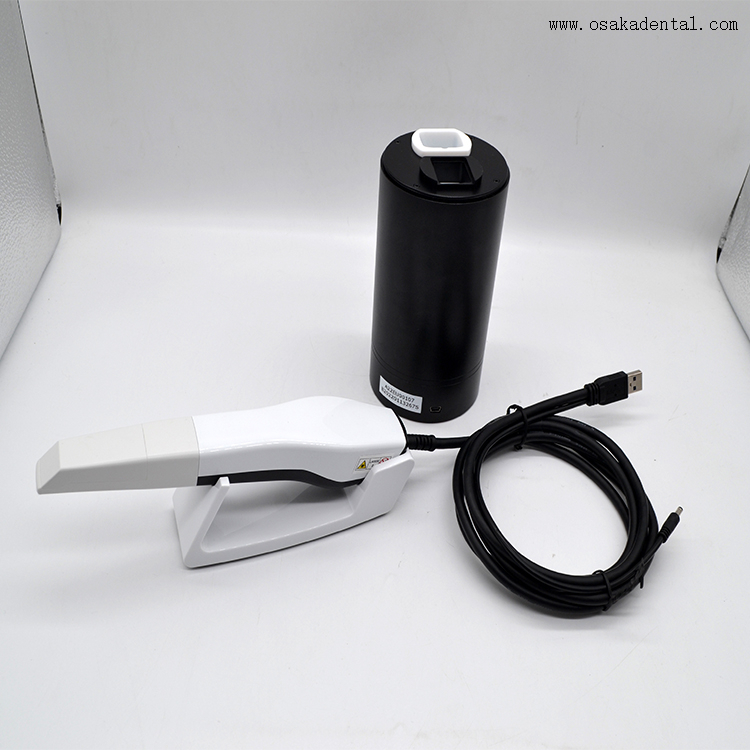

The product is composed of the probe, the power adapter, the calibrator, the supporting software
(release version: 1) and the probe bracket. The probe includes the probe body and P2 probe
head assembly. The supporting software includes a USB Key for software authentication and
encryption.
This product uses the optical scanning method to obtain the three-dimensional shape feature
data of the surfaces of teeth, gums and other tissue. It output the three-dimensional digital
impression data which can be used in the CAD / CAM denture design and processing.
Main Dimension
Length into the mouth: 85mm
Height of probe window: 15mm
Total size: 216mm (L) *40mm (W) * 36mm (H)
Specifications
Scanning depth: 0~15mm
Scanning accuracy: ≤15 μm
Repeatability precision: ≤10 μm
Environmental Requirements
Operating temperature: 5 ℃ ~ 40 ℃
Storage temperature: -10 ℃ ~ 55 ℃
Operating humidity: ≤80%
Storage humidity: ≤93%
Atmospheric pressure: 760hPa ~ 1060hPa
Operating Environment: Indoor operation and avoid direct to the scanned body.
Working Power Requirements
Rated power: AC 100-240V, 50/60Hz
Input power: 30VA
