OSA-R98P
OSAKADENTAL
9018499000

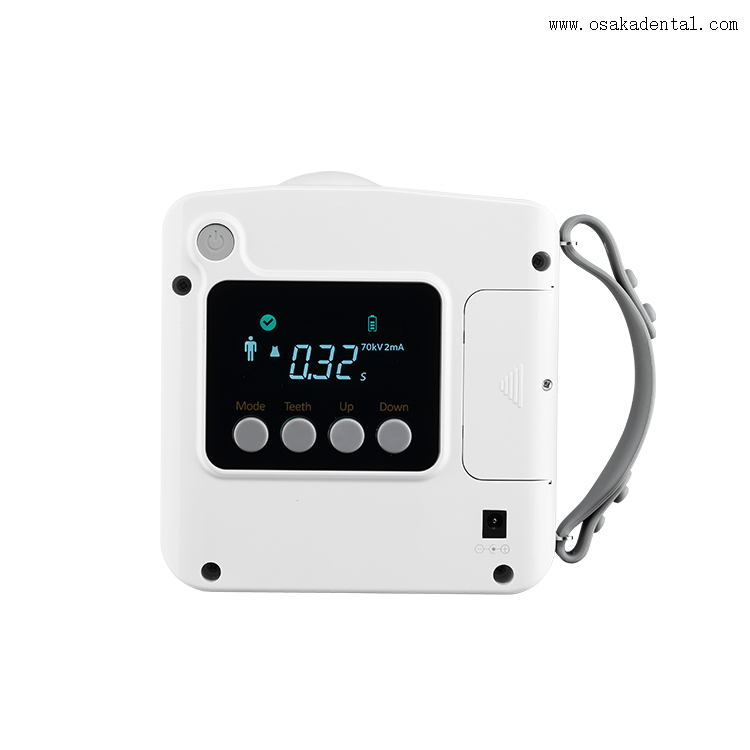

Dental Portable High Frequency X-Ray Machine
Dental X-rays machines expose specific areas of the mouth and head to low doses of radiation that pass through skin but are absorbed by bone, resulting in radiographs (images) in which teeth look lighter than the gums and soft tissues.
High-frequency portable X-ray machine, compared with ordinary portable X-ray machines, the operators and patients will suffer from less radiation with better image effects.
The circuit components imported from South Korea adopt high-frequency closed-loop control. When the battery power is low, the image effect will not be affected.
Adopting the micro-focus tube imported from Japan's Canon, with the focal point of 0.4mm and 12.5-degree anode angle, ensures a clearer image.
The exposure time is short with only about 0.4 seconds, which is 5 to 8 times shorter than the that of ordinary portable X-ray machines to ensure less radiation
it can aslo reduce the influences of external factors such as hand shake, providing a better shooting effect.
Small in size, light in weight, simple to operate, and available to be operated with single hand.
Specification:
Tube Voltage: 70kV±10
Model: OSA-R98P
%
Tube Current: 2mA±20%
Input Voltage: 100V-240V
Frequency: 50Hz-60Hz
X-Tube: Canon (Toshiba)
Anode Angle: 12.5 °
Focus: 0.4mm
Exposure Time Range: 0.04s -2.0s
Leak Emissivity: 1 meter 0.25mGy/h
Machine Weight: 1.7kg
Relative Humidity: 30%RH-75%RH
