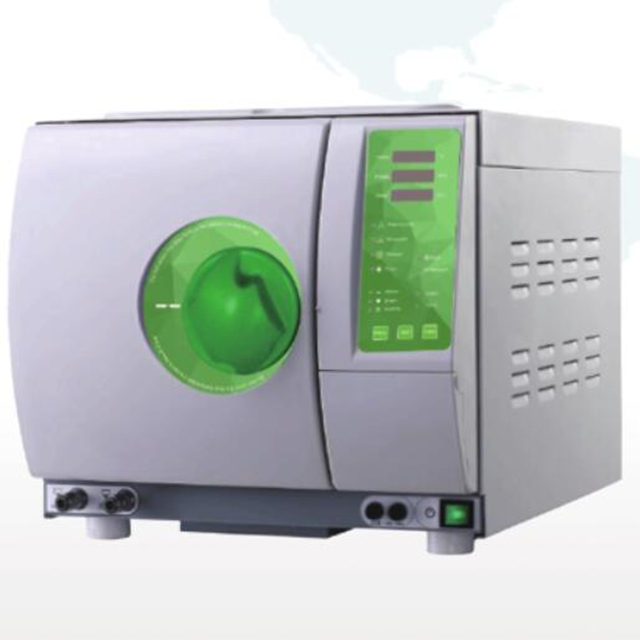

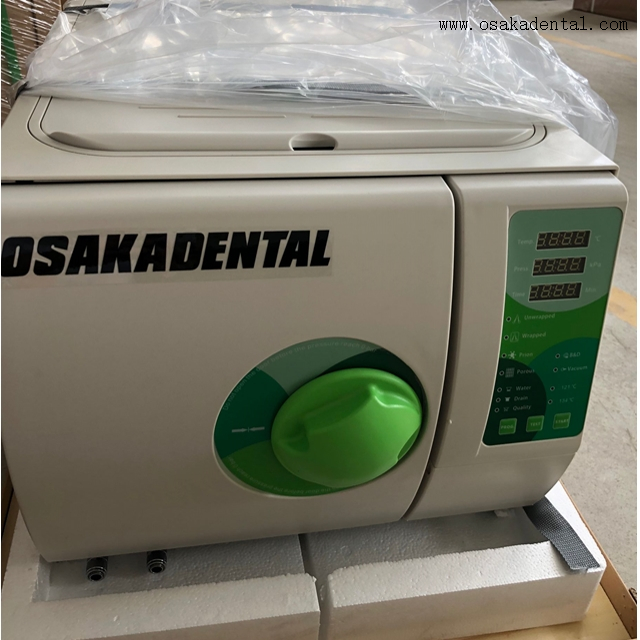

Digital Display B Class Standard Autoclave

Quantity:
  • OSA-322-18L/23L
  • OSAKADENTAL

Digital Display B Class Standard Autoclave


Digital Display B Class Standard Autoclave


Basic Specification

Rated voltage: a.c.220V-230V, 50Hz Rated power: 18L/ 1500VA, 23L/ 1700VA Fuse: T10A

Operation temperature: 540

Atmospheric pressure range: 70kPa ~ 106kPa; The board affording weight: 4000 N/m2


Noise: < 50db

Maximum capacity of one tray: 1000g

The frequency of water draining: once a day, drain the water once you find “waster water over” during operation.

The maximum duration of using loading test: 90mins

The maximum thermal radiation energy under the condition of 20~26: <2000J



Sterilizer Chamber

Material: stainless steel (for medical) Max. work pressure: 2.5bar

Min. work pressure: -0.9bar Max. temperature: 145

Chamber volume: 18L(Φ245×352mm) 23L(Φ245×450mm)

Loading size: 18L (198×204×285mm) 23L(198×204×385mm)

Max. loading weight: 18L (3.07kg/cm2) 23L (3.21kg/cm2)

Working pressure/temperature: 1.10~1.30bar/121~122; 2.10~2.30bar/134~135Water volume for one cycle: 0.16L~ 0.18L



Sterilizer Steam Safety Valve Safety release pressure: 2.45bar Max. working temperature: 160



Water Tank

Main water tank volume: 18L (3.5L) 23L (4L)



CAUTION: Water added into main water tank must be distilled water!

Water temperature must be under 40.
