OSA-F692- 3L
OSAKADENTAL

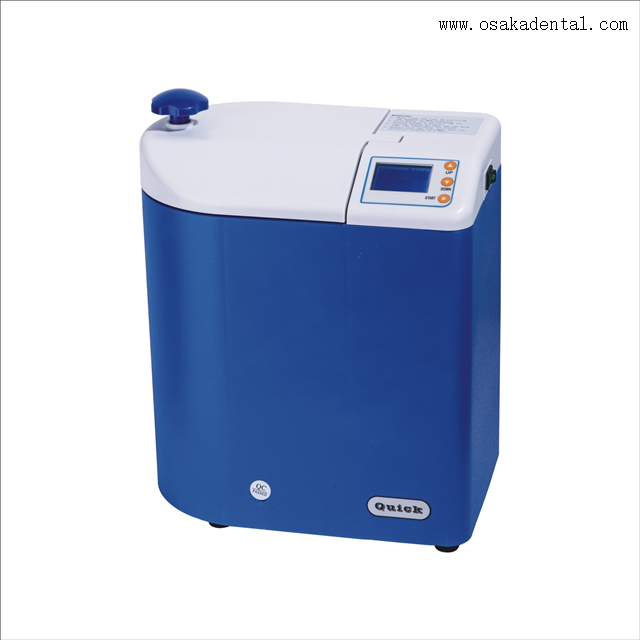

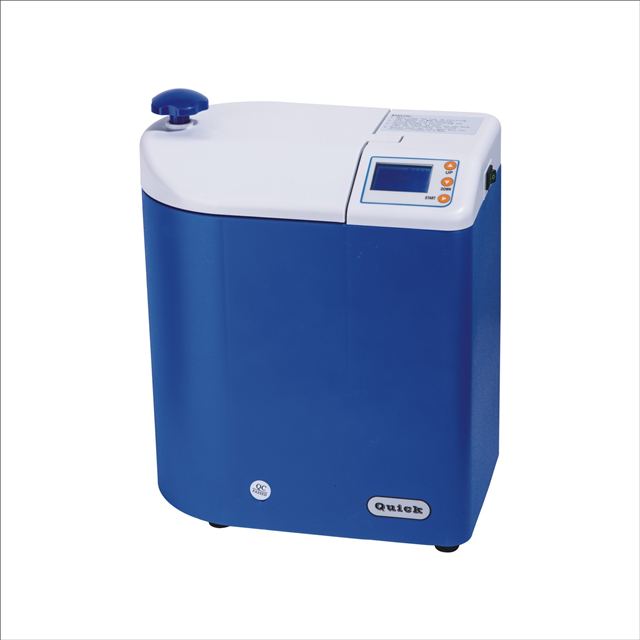

LCD Display Quick Sterilizer N Class Autoclave
1．General Introduction This Autoclave is a precision instrument specializing in the operation occasion in need of simple, fast and efficient sterilization by the doctor or his/her assistants, and the doctor shall take the responsibility for such work. This Autoclave is equipped with the microprocessor for intelligent control and man-machine interface for convenient operation. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type autoclave is reliable product in sterilizing.
2．Tech. Parameter Inner chamber of the quick steam sterilizer (Diameter X Depth) 125mm X 195mm Rated Voltage………… 220V±22V,50Hz±1Hz ； 110V±11V,60Hz± 1Hz Rated Power………………………………………………………………500VA Sterilizing:(Pressure/Temp.)……………………………………2.0～2.3bar/134℃ (Both of above are Under Standard Atmospheric pressure) Fuse-Melting pipe……………………….. ……. ……. …… T15A； T30A Water Consumption volume per recycling round………….. …………… . .0.15L Operating Temp……………………………………………………………0-40ºC
LCD Display Quick Sterilizer N Class Autoclave
1．General Introduction This Autoclave is a precision instrument specializing in the operation occasion in need of simple, fast and efficient sterilization by the doctor or his/her assistants, and the doctor shall take the responsibility for such work. This Autoclave is equipped with the microprocessor for intelligent control and man-machine interface for convenient operation. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type autoclave is reliable product in sterilizing.
2．Tech. Parameter Inner chamber of the quick steam sterilizer (Diameter X Depth) 125mm X 195mm Rated Voltage………… 220V±22V,50Hz±1Hz ； 110V±11V,60Hz± 1Hz Rated Power………………………………………………………………500VA Sterilizing:(Pressure/Temp.)……………………………………2.0～2.3bar/134℃ (Both of above are Under Standard Atmospheric pressure) Fuse-Melting pipe……………………….. ……. ……. …… T15A； T30A Water Consumption volume per recycling round………….. …………… . .0.15L Operating Temp……………………………………………………………0-40ºC
