OSA- E05C1
OSAKADENTAL

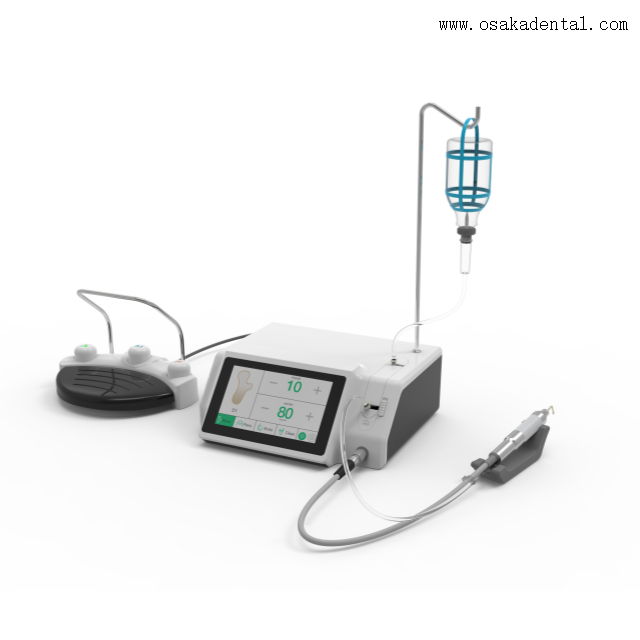

New and Economic Ultrasonic Bone Surgery Unit
Power supply voltage: AC100~240V
Powersupply frequency:50/60Hz
Input power: 150VA
Dimension:286mmx252mmx113mm
Weight: 3.2kg
Ultrasonic handpiece
Dimension:ф21.5mmx110mm
Tail cord length: 1.8m
Foot pedal controller specifications
Tail cord length: 2.0m
Working frequency
24kHz~36kHz
Flow
30~110ml/min
Foot pedal controller
Tail cord length: 2.0m
Operation environment
a)Environment temperature:0°C~+40°C
b)Relative humidity:30%~75%
c)Atmosphere pressure:70kPa~106kPa
d)Temperature in the water inlet ofwater-cooling equipment is not higherthan 25°C
Intermittentoperation equipment
Device forintermittent operation: 60sON, 10S OFF
New and Economic Ultrasonic Bone Surgery Unit
Power supply voltage: AC100~240V
Powersupply frequency:50/60Hz
Input power: 150VA
Dimension:286mmx252mmx113mm
Weight: 3.2kg
Ultrasonic handpiece
Dimension:ф21.5mmx110mm
Tail cord length: 1.8m
Foot pedal controller specifications
Tail cord length: 2.0m
Working frequency
24kHz~36kHz
Flow
30~110ml/min
Foot pedal controller
Tail cord length: 2.0m
Operation environment
a)Environment temperature:0°C~+40°C
b)Relative humidity:30%~75%
c)Atmosphere pressure:70kPa~106kPa
d)Temperature in the water inlet ofwater-cooling equipment is not higherthan 25°C
Intermittentoperation equipment
Device forintermittent operation: 60sON, 10S OFF
