OSA-F043-E7
OSAKADENTAL
9018499000

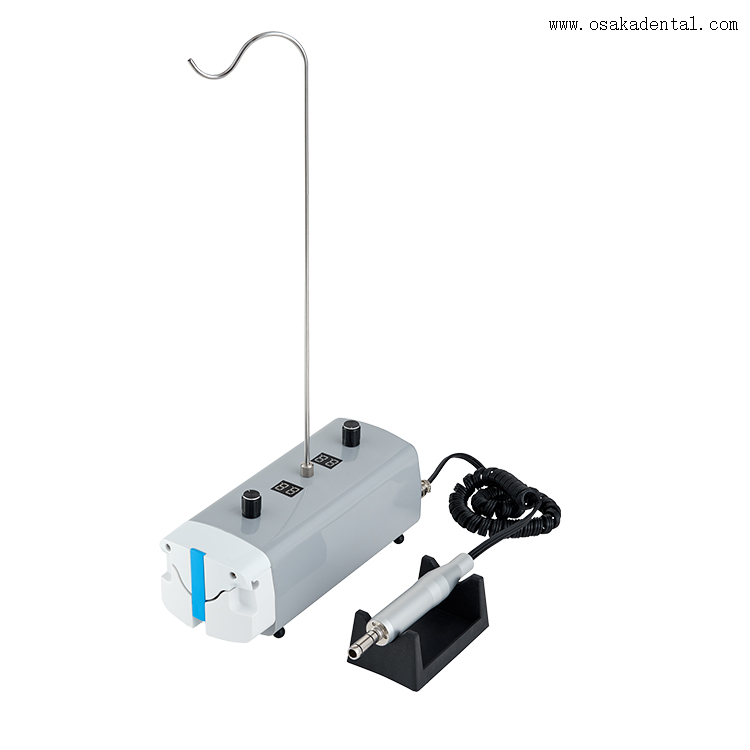

Self-pumping Water Brushless Electric Surgery Motor
Electric dental handpiece motors are an alternative to air turbine powered handpiece motors. The main benefit to an electric motor is a consistently high torque throughout rpm speeds.
Electric motor composes of motor, control unit, foot control and Coolant solution hanger post.
Technical Specification:
Adapter:
Input: 100-240V～, 50/60Hz，1.5A
Power input: 50VA
Motor:
Motor type: Direct current brushless motor
Voltage: DC36V
Operation mode: REV
Speed: 2000-50,000 rpm
Torque: 17N·cm
Coolant gas: 6-8 NL/min(0.2MPa)
Sterilization: 121℃20 minute,or 132℃15 minute
Motor size: Ф23×L145mm
Noise :≤60dB
control unit:
Model: EM1-A
Voltage :110-220V～
Motor size: L225×W90×H100mm
Fuse protector: T3.15AL250V
water supply:
Cooling water supply 0-100ml/min
