OSA-F106- UV-time UV- sterilizer
OSAKADENTAL

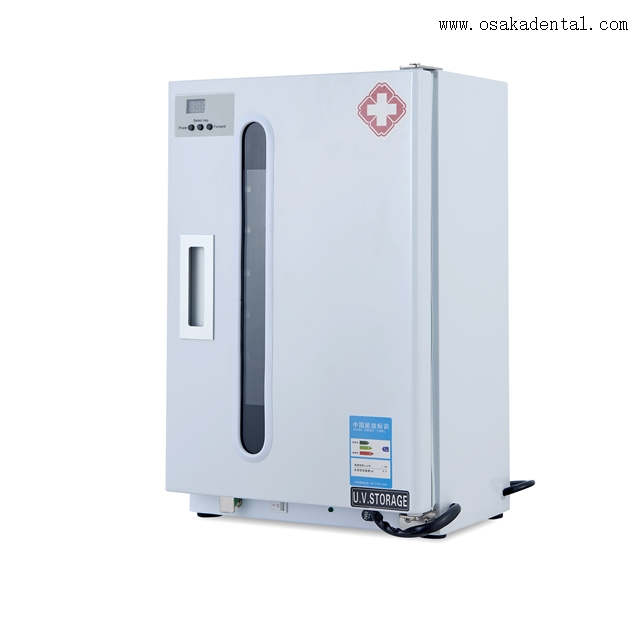

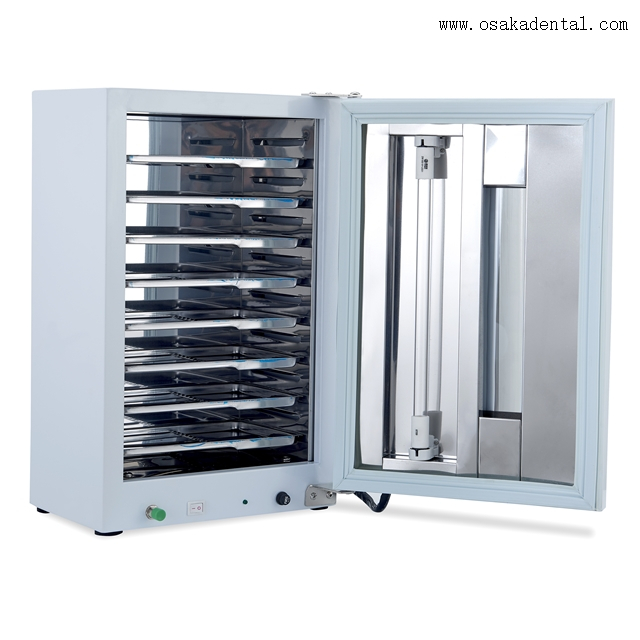

UV Sterilization Cabinet Autoclave with Ozon
1. Please place the tools on the tray after cleaning and dry.
2. Please place the cabinet horizontally on the stable surface or hang on the wall.
3. Please ensure the switch on the door is on when plug in the power cord.
4. Please check the UV light and see if it works, if not, please cut the power and open the cabinet door to rotate the UV tube, make sure it has a good connection with the power source.
5. The cabinet door is equipped with safety switch, the power will automatically cut off when the door is opened.
6. Only 15 mins can finish the sterilization for all kinds of tools.
Attention:
1. This product is not suitable for sterilize the liquid.
2. Even though the product is equipped with the safety switch, but for your safety, please cut off the power before opening the door while working.
3. When cleaning the product, please use wet towel instead of spraying water to it.
Specification:
Power: single door 15W / double door 30w
Voltage: 200V
Frequency: 50Hz
Volume: Single door 27L / double door 54L
Light tube: Diameter (15mm), length (331mm), power (10W), currency (220mA), pressure (55~70), 254mm UV intensity from 1m distance (30), average life cycle (8000 hrs) Setting time: 15min
Outer dimension: single door 30*23*47cm / double door 64*23*47cm
Inner dimension: single door 24.5*15*40cm / double door 60*16*40cm
Packing dimension: single door 36*28*59cm / double door 69*28*58cm
Without time setting: each time need to calculate the time for 15 mins for turning off the machine.
With time setting: Each time 15 mins, the machine will automatically turn off after 15 mins.
The between with or without Ozone: The Ozone generator does not require any auxiliary materials and additives. While sterilizing, the generator will generate some Ozone spreading inside the cabinet completely, fast and efficient, can solve the problem of the UV light, which sometime it will be blocked by the obstacles. Also, it can kill almost all kinds of bacterial and smell. Without Ozone generator, the sterilization might be not so effective.
