Dental Equipment Dental 3D Scanner

The computer is installed with a scanner software and provides the end result of a dental scan. The wand is inserted into a patient's mouth and is glided, by the orthodontist, across the bridge of the top and bottom teeth. As the wand moves, the scanner software is capturing the digital impression of the oral cavity.

PC and Working Environment Requirements

Environment Requirements： ：

--Work temperature: 10℃～30℃

--Keep the scan cabin away from bright light

--Set the scanner steady without vibration affect

PC configuration requirement： ：

PC model recommendation：

-- DELL7050MT or XPS8920, or above

PC configuration requirement：

-System: win7,win8, win10(64 bit only)

--USB ports: scanner needs one USB 3.0 port; scanner dongle needs one USB port with no

preference

--Display card: independent display card, Nvidia GTX640 or GTX750 or better

--CPU: Intel® Core™ i5 or better

--Memory: 8G or better

--Shut down Firewall

Note: Please be sure to follow above requirements, otherwise, for the problems arised during the

scanner installation and operation process, technician staff have the right not to offersupport.

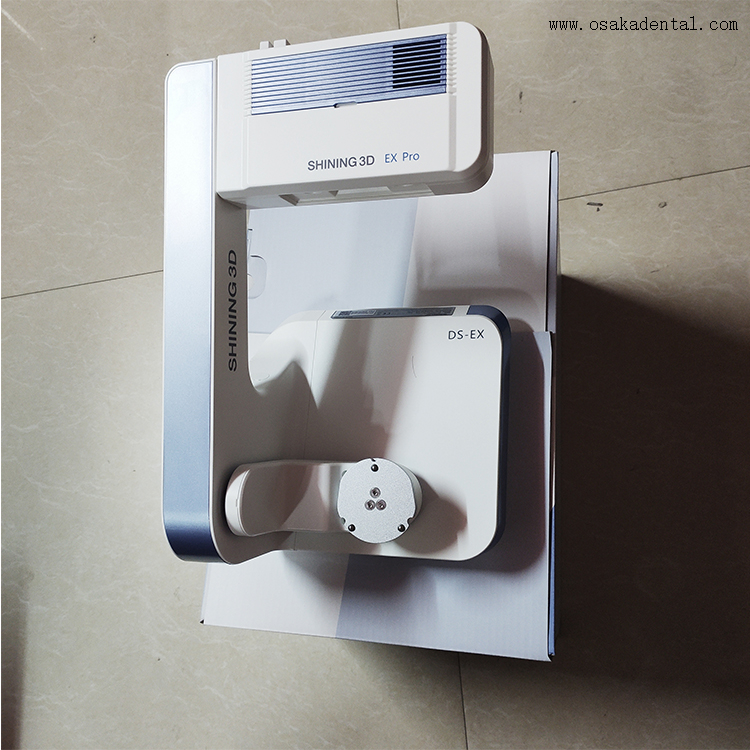

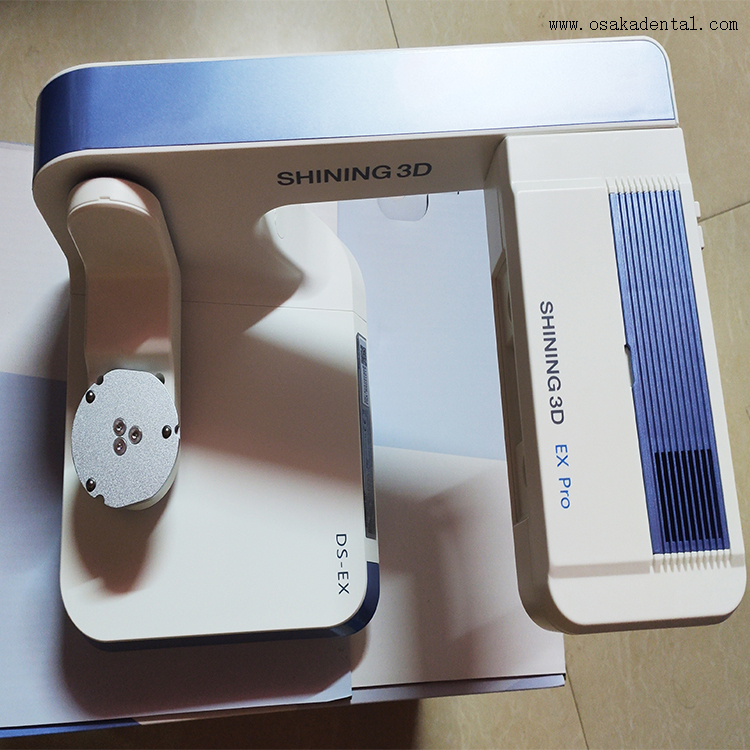

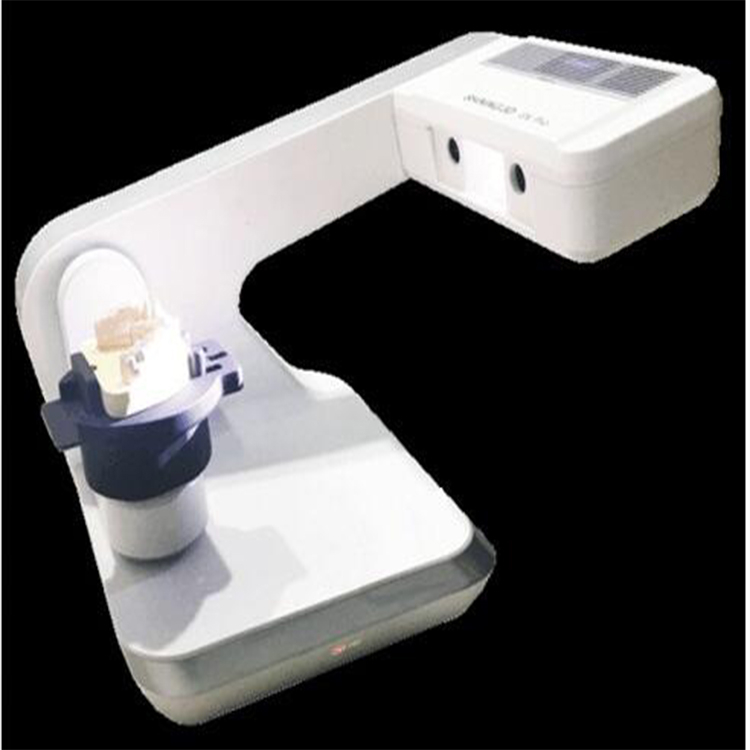

Model AutoScan-DS-EX Pro

3D Scanning area 100*100*75mm

3D scanning principle structured light 3D scanning

Accuracy < 10 micron

Scanning speed Bite 8s; Upper/Lower Jaw 15s; 1-8 teeth 15s; Impression 70s;

Resolution 1.3MP

Weight 5KG

Working temperature 10℃~30℃

Power DC24V

Output data format STL OBJ

Interface USB3.0

O/S Windows7/8/10, 64bits

Light source White/ Blue light optional
