OSA-S1
OSAKADENTAL

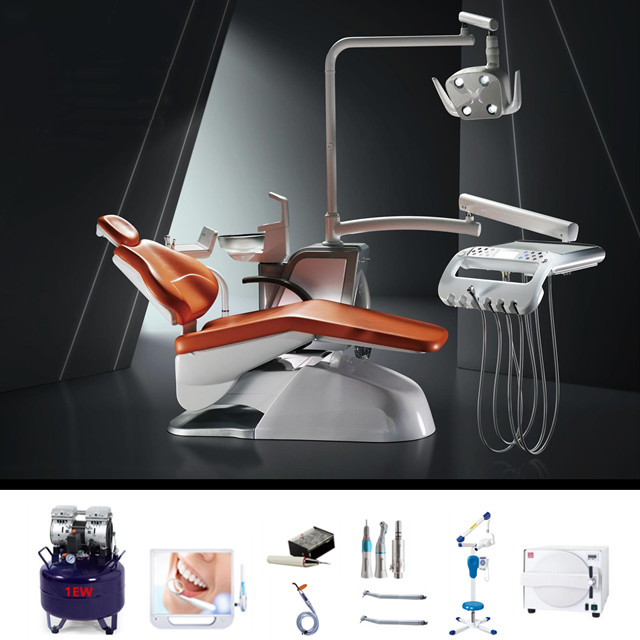

Dental Chair with with Dentist Stool for Clinic
Major Parts
1. Thermostatic water heating system (applied to cup filler and three-way syringe): 1set,
2. Spittoon flushing and cup filling system (water supply amount can be preset): 1set,
3. Quiet electric lift chair (with adjustable pillow, single armrest) : 1set,
4. Main table integrated with control panel, with
5-slot tool holder: 3 for handpiece tubings, 1 for three-way syringe, 1 open for optional use: 1set, 5. LED film viewer: 1set,
6. Assistant control panel with 5-slot tool holder: 2 for saliva suctions/strong&weak, 1 for three-way syringe, 2 open for optional use: 1set, 7. Rotatable ceramic spittoon: 1set,
8. Reflector LED sensor dental light (cold light, gradual brightness adjustment): 1set,
9. Multifunction pedal switch (for water/air supply, chair movement etc.) : 1set,
10. Pure water bottle 600ml (removable, air pressurized, switch control): 1set,
11. Dentist stool: 1set.
Technical Specification
Supply voltage: AC110V/220V 60Hz/50Hz
Motor voltage: DC24V
Air pressure: 0.5MPa - 0.8MPa
Water pressure: 0.2MPa - 0.4MPa
Handpiece Tubing: 2/4-hole optional, Fiber optic tubing with extra charge
Optional Equipment High/low speed air turbine handpiece 2-hole/4-hole/Fiber optic Built-in LED curing light Built-in ultrasonic scaler Intra-oral camera system Medical air compressor
