OSA-VP60-2
OSAKADENTAL
9018499000

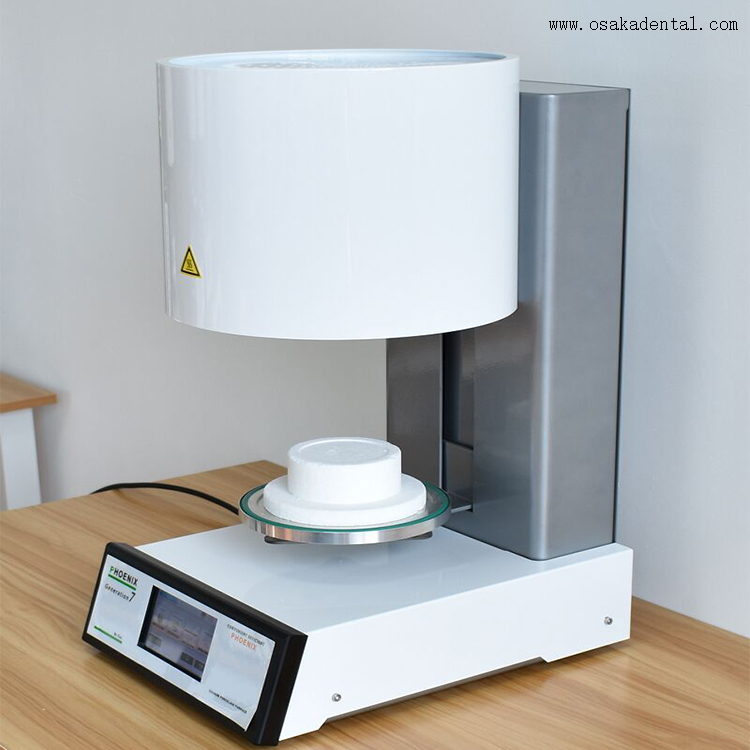

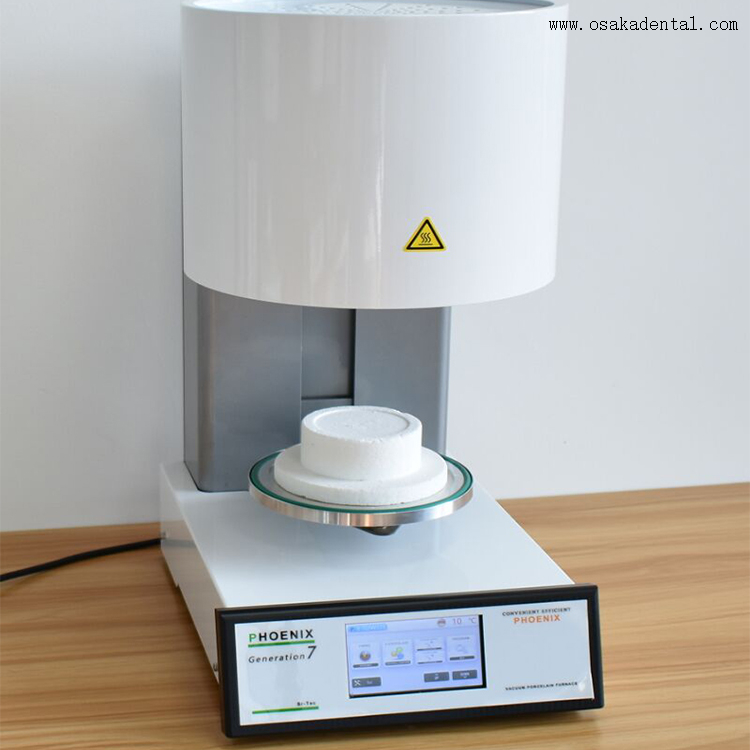

Dental Lab Equipment Dental Vacuum Porcelain Furnace
A porcelain furnace performs only one significant function—processing raw dental porcelains to optimal levels of maturity while maintaining important features of the restoration, such as surface texture, translucency, value, hue, and chroma...
Specifications:
operating:
Heating rate: up to 200 degrees Celsius / minute (392 degrees Fahrenheit / minute)
Maximum temperature: C500 type Maximum 1200 degrees Celsius (2283 degrees Fahrenheit)
Model C300 up to 1100 degrees Celsius (2012 Fahrenheit)
Maximum temperature retention time: up to 2 hours and 46 minutes
Vacuum level setting standard: 1-101%
electricity:
Operating range: 100-120V 50/60HZ 230V 50/60HZ
Current: 14.5 amps @110V 7.0 amps @230V
Power: up to 1500 watts (without vacuum pump)
Typical specifications:
Volume: 30.7cm (12.1") Height × 40.4cm (15.9") Width × 52cm (20.5") Deep
Furnace platform: 9cm (3.5") diameter
Net weight: 17Kg (less than 1Kg depending on the accessories)
Packing weight 20Kg (less than 1Kg depending on the accessories)
Third, installation and start
