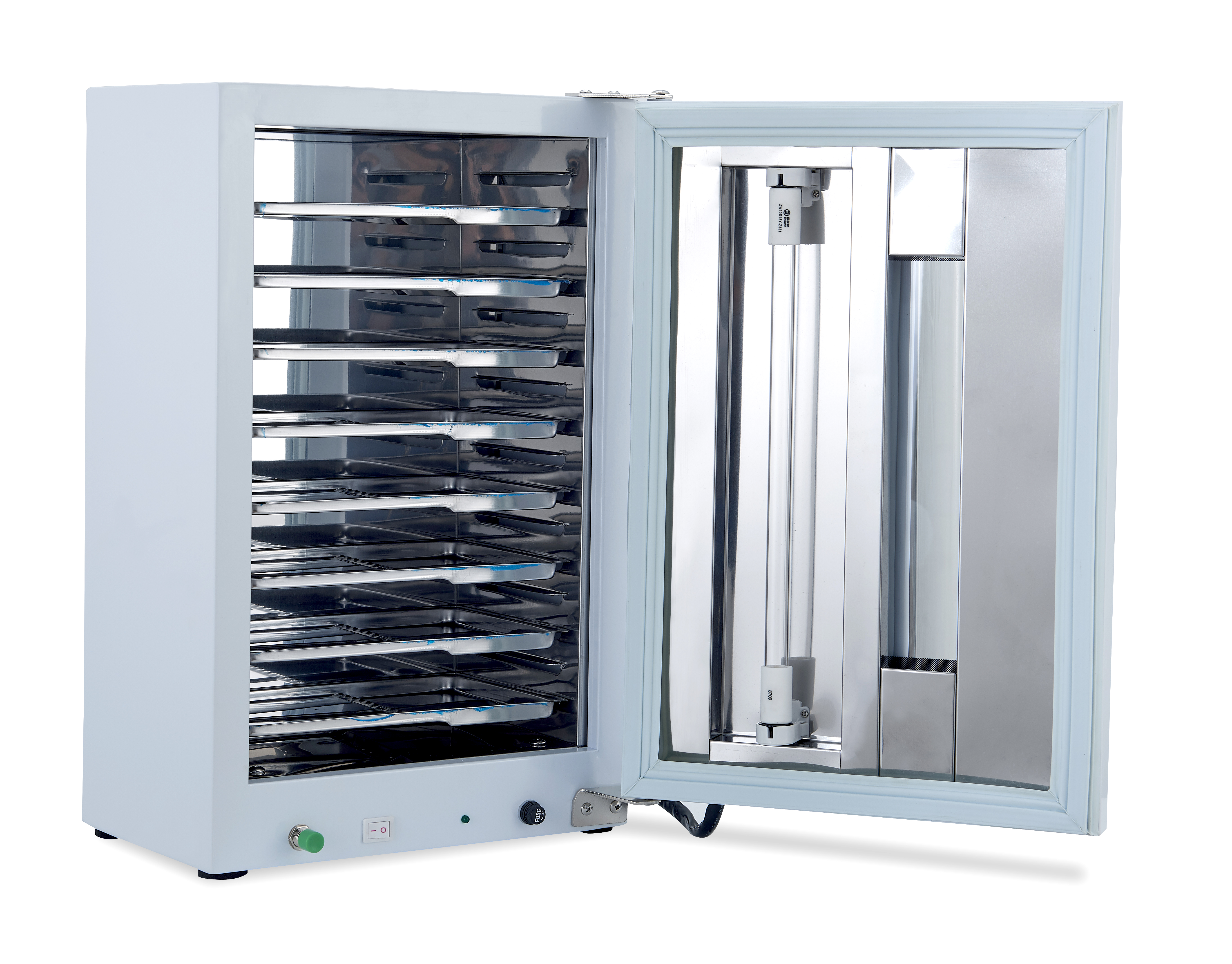

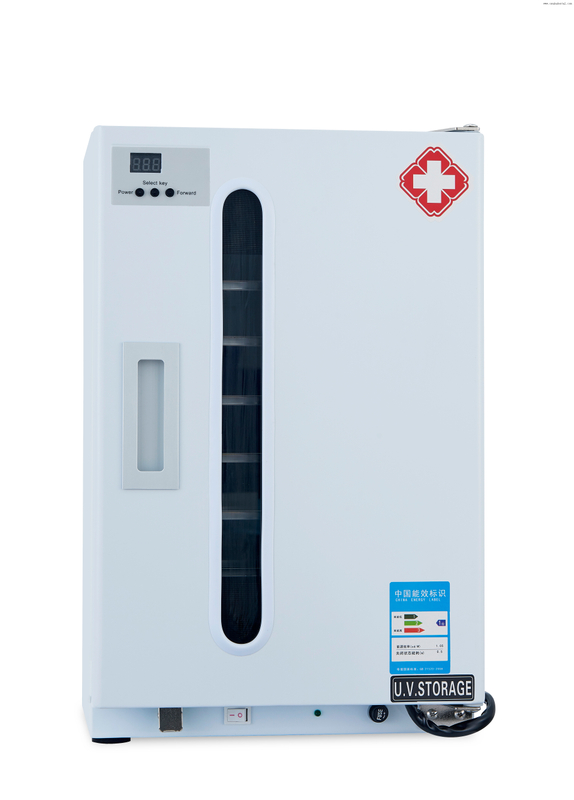

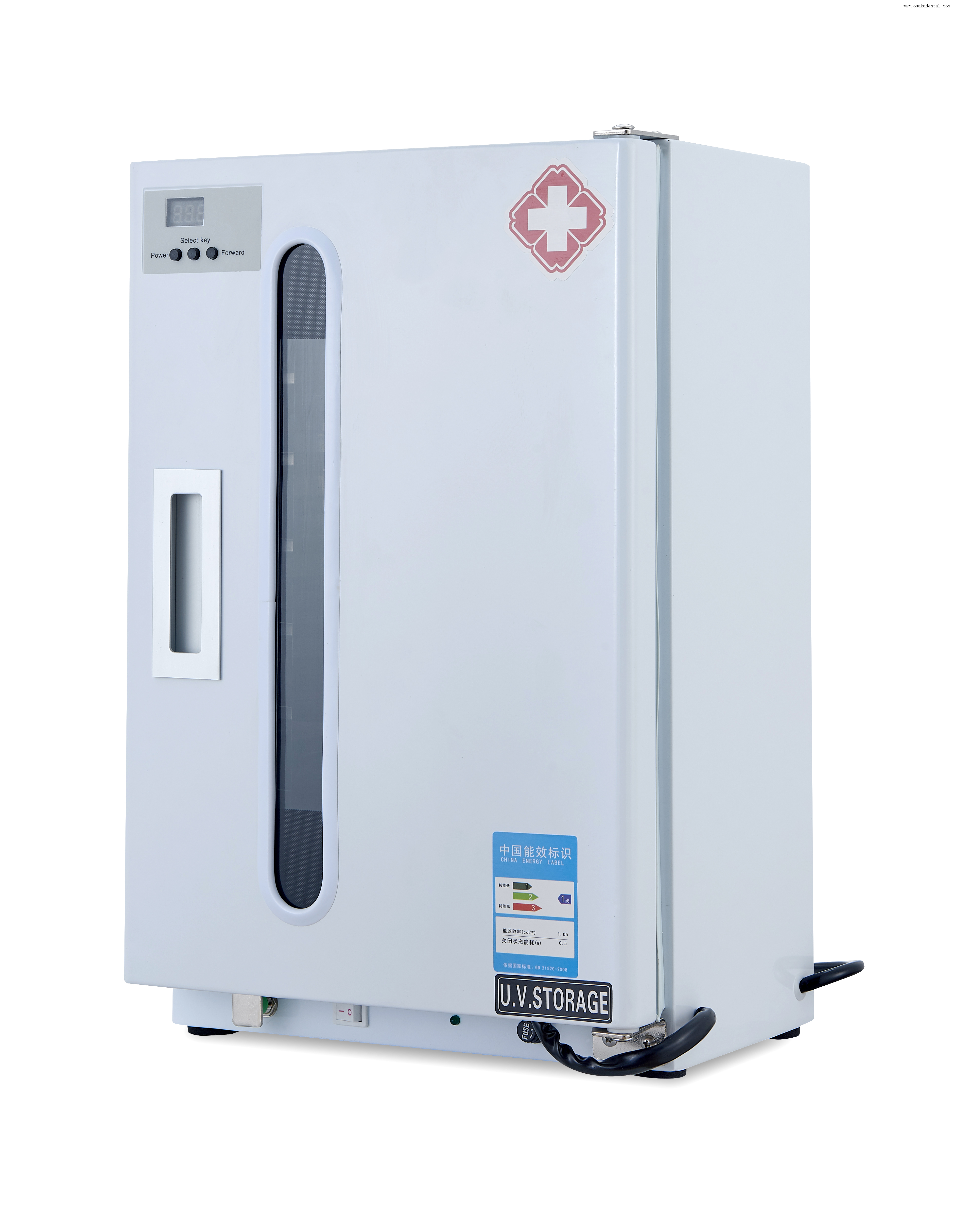

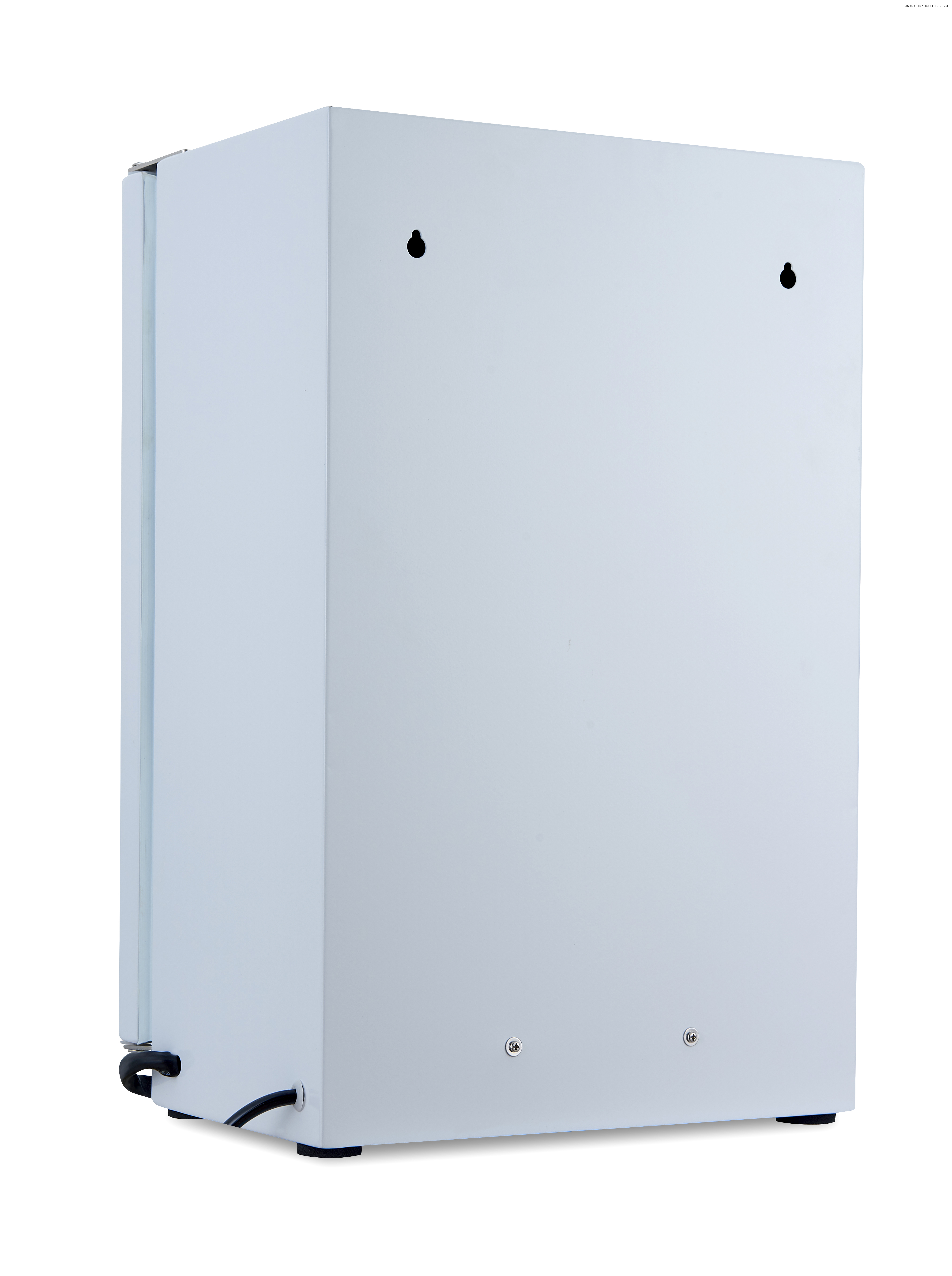

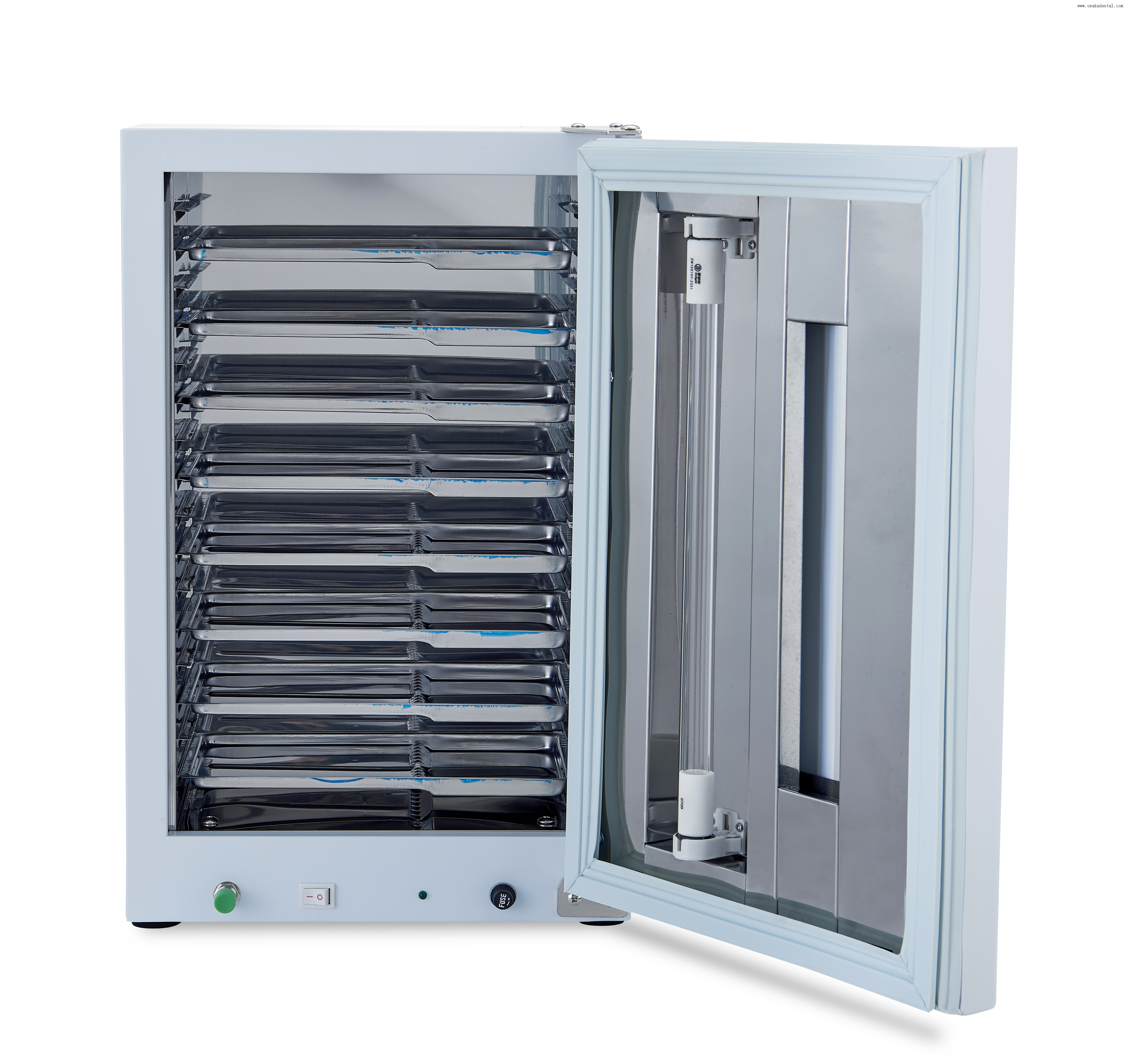

Stainless Steel 27L Capacity Ozone UV Sterilizer
Specification:
Model With Ozone and timing
Rate Powder 15W
Rate Voltage 220V/110V
Rate Frequency 50Hz
Capacity 27L
Disinfection time 15min
Wave length 185nm
Lamp Diameter 15mm
Lamp length 331mm
Lamp power 10W
Lamp current 220mA
UV intensity 30W/ ㎡
Lamp life 8000h
Internal dimension 24.5 * 15 * 40cm
External dimensions 30 * 23 * 47cm
Packaging size 36 * 28 * 53cm 3
Gross Weight 11KG
Application:
The product uses ultraviolet rays for sterilization which is suitable to eliminate the germ on glass, metal, plastic tools. It provides a clean germ-free environment for storage of implements
Operations:
1) Put the tools on the trays after the tools has been cleaned and dried.
2) Put the cabinet on a stable place or hang it on a vertical wall.
3) Make sure that the door control is turned on before you put on the Power.
4) Check up whether the UV light is working normally. If it cannot work normally, please open the door after cutting off the power and slowly rotate the UV lamp to ensure that the UV lamp and the socket are well-connected.
5) The cabinet is equipped with door-control system, the power will be automatically cut off when the door is opened.
6) 15minutes sterilizing time is enough to sterilze any tools.
Caution:
1) It is unsuitable to sterilize liquid.
2) For the sake of safety please cut off the power before you open the door.
3) When cleaning the cabinet, please use the wet towel and don’t flush with water.
4) If there is any breakdown during the course of using, please contact the maintenance personnel. Do not try to dismantle by unauthorized people.
Timing:
1) No timing function: need to estimate time manually, after 15 minutes, need to turn off the machine manually.
2) With timing function: When the time is up, the light will be turn off Automatically.
