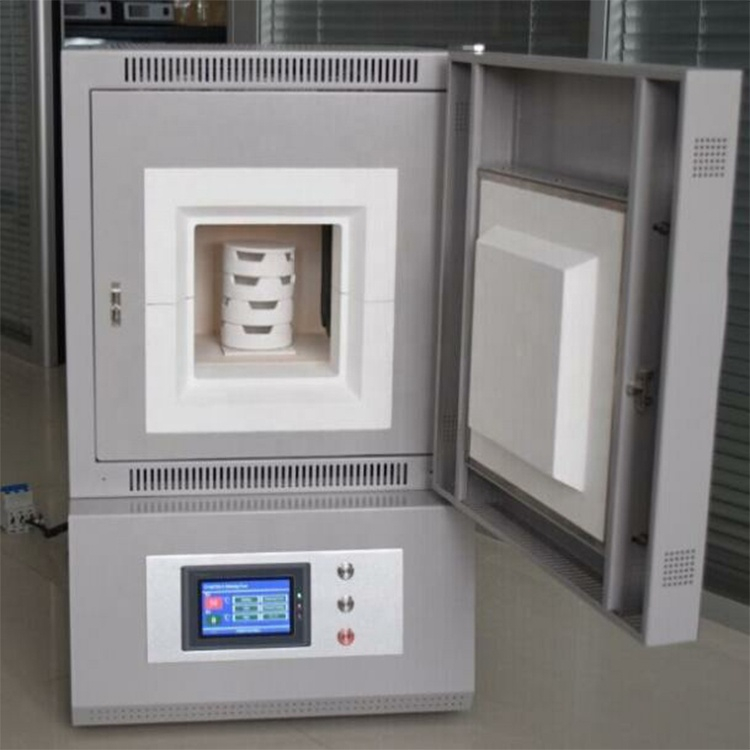

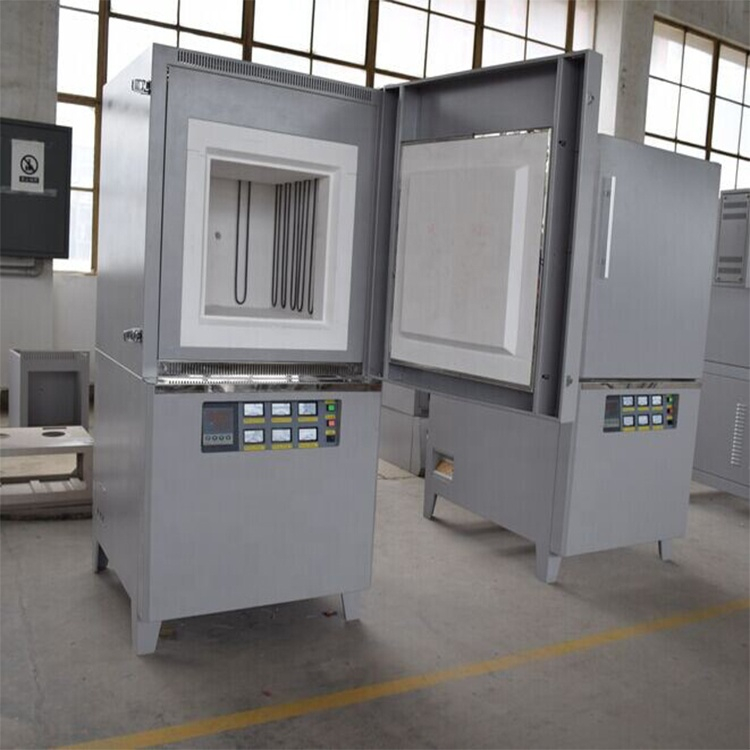

Dental Lab Equipment Dental Furnace for Sintering Zirconia
Dental sintering furnaces are used to process dental zirconia after it has been milled into a crown, bridge, framework or other restoration.
1.1 Technical data
Quartz size: 300mm X 300mm X 400mm (W X H X D)
Temperature: max. 1700ºC
Working Temperature:<=1600ºC
Temperature Control: PID automatic control via current limiting phase angle fired thyristar with 51 steps programmable
Heating Rate: 0-20ºC
Thermocouple: B type
Temperature accuracy: ±1ºC
Heating Element: Mo heater
Furnace Structure: Double layer steel casing with dual cooling fan
Furnace Chamber: ceramic fiber
1.2 Electrical data
Power supply: 220Volt AC 50/60Hz
110 Volt AC 50/60Hz
Power consumption: max 3200 Watts
