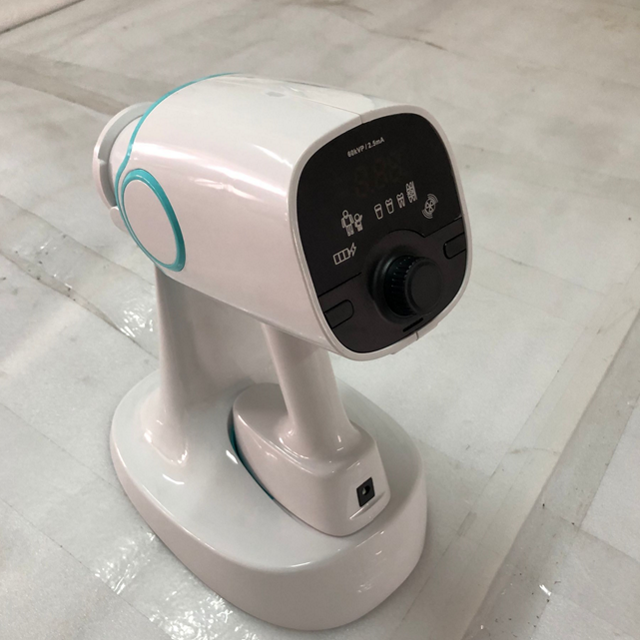

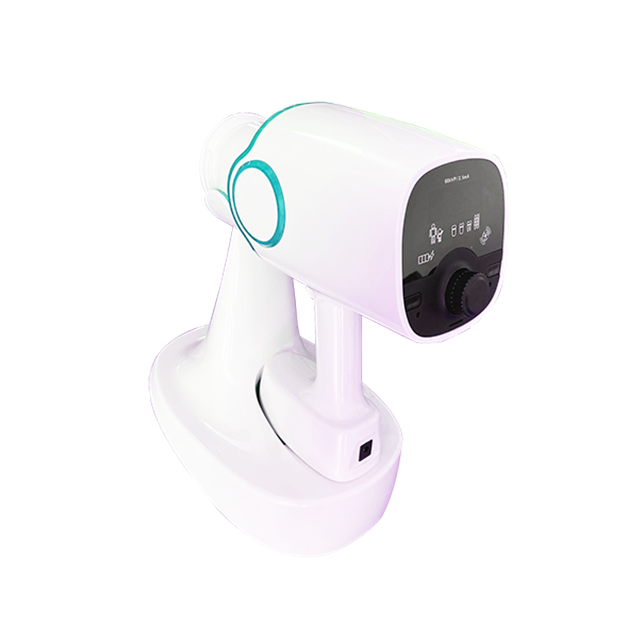

OSA-Hand Carry X Ray
OSAKADENTAL
Power On/Off

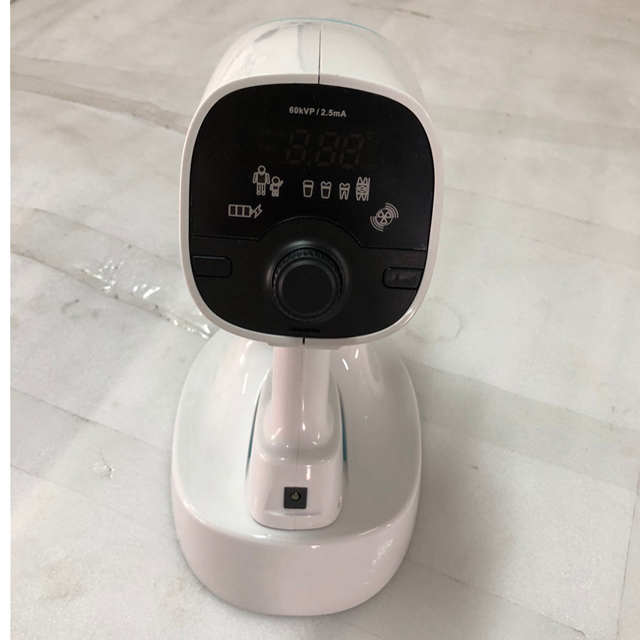

1. The power switch is located at the bottom of the equipment. Turn the handle to the "ON" position to startup the equipment. The following indications on the control panel will lit up: Digital time display Tooth type options display Adult/Child options display Residual power display Exposure icon 2. Switch the handle to the "OFF" position to shut down the equipment.
Battery and Charging Status
1. Connect the power charger to the power socket of the equipment to start charging. Under charging state, battery icon will flash, from 0 grid to 4 grids back cycle display. When charging, the red light of the power charger will lit up and the green light will be off; When the battery is fully charged, the green light of the power charger will lit up, the red light will be off, and 4 grids of battery icon will keep in lit.
2. In the state of independent battery power supply (no power charger is connected and no external power supply), the current battery power is displayed. The number of battery cells is shown as follows: When the battery is 21-22 volts, it displays 1 grid of power, and when it is less than 21 volts, it displays a blank, and flashes between the blank and 1 grid, indicating that the battery is under voltage; When the battery is 22-22.8 volts, it displays 2 grids of power; When the battery is 22.8-23.5 volts, it displays 3 grids of power; When the battery is more than 23.5 volts, it displays 4 grids of power. When the battery is under voltage, "E-1" alarm will display on the panel. In this case, Exposure cannot be performed (The equipment shall not exposure under charging condition to prevent explosion).
3. Please make sure that at least one grid of power is left before exposure.
Display Mode
Mode 1: Exposure time display mode
Mode 2: Angle display mode
The equipment is commonly used in Mode 1 and Mode 2, and the conversion operation is as follows: Mode 1 is generally used by default during startup. Keep pressing SWITCH button for 5 seconds in any state, release the button when hearing a beep, the panel will switch to Mode 2. In Mode 2, the panel will switch to Mode 1 for 5 seconds by clicking any button, and then it will get back to Mode 2 automatically. Keep pressing SWITCH button for 10 seconds under Mode 2, release the button when hearing beep (the buzzer will beep within 10s), the panel will switch to Mode 1.
